cas 整合jira 安装教程

avatar

前言：当前原型jira 版本为7.8.0,cas 版本为5.2.7。
cas 5.x版本使用spring boot + maven 或着spring boot + gradle ，区别于5以前的springmvc配置
由于目前网上新版本的教程非常少，具体配置又由于新版本的使用有所差别，因此，编写了此教程记录个人学习体会和教程记录。
参考文章:[https://github.com/apereo/java-cas-client#atlassian-integration]

cas整合jira实现思路

• cas的客户端实现是依靠在客户端配置cas的过滤器和监听器来实现的，并配置在首位，用于监听子系统的session和收取cas server发过来的命令。
• jira有自己本身的用户登录登出的验证机制，jira的登录主要依靠认证器com.atlassian.jira.security.login.JiraSeraphAuthenticator来进行认证。
• 那么在jira的配置文件中配置cas的客户端依赖，并替换掉jira的认证器即可实现cas的整合，cas官方已经提供了相关的jar包和配置说明

操作说明

JIRA_HOME:

war/jar格式: ${install_url}/webapp

安装文件格式： ${install_url}/JIRA Software

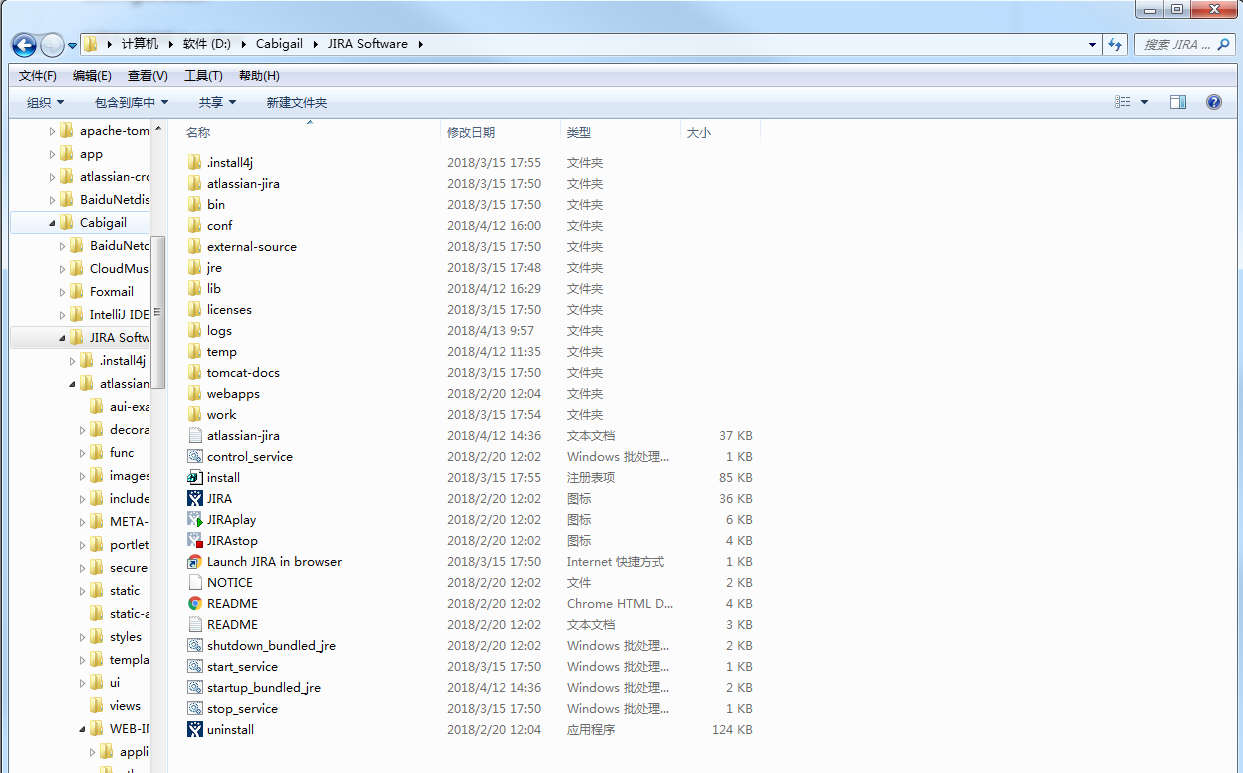

本教程使用安装文件格式,安装install_url目录如下：

导入相关依赖包:

1. 需要下载cas client的支持jar cas-client-core-xyz.jar [1]和cas 与jira和confulence的支持jar cas-client-integration-atlassian-xyz.jar [2]
   这里使用的是cas-client-core-3.4.1.jar和cas-client-integration-atlassian-3.4.1.jar

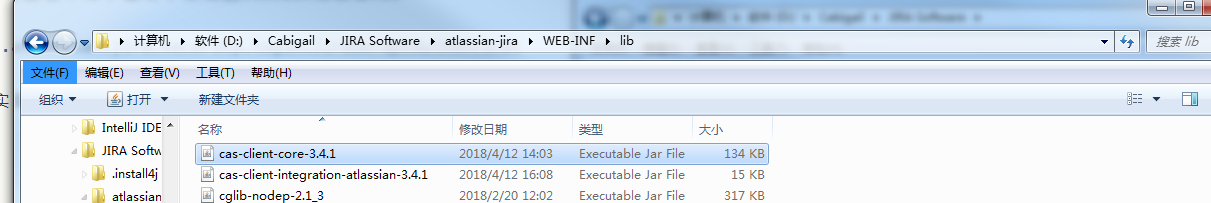

2. 将jar包放如入JIRA_HOME/atlassian-jira/WEB-INF/lib下，如下图

配置web.xml:

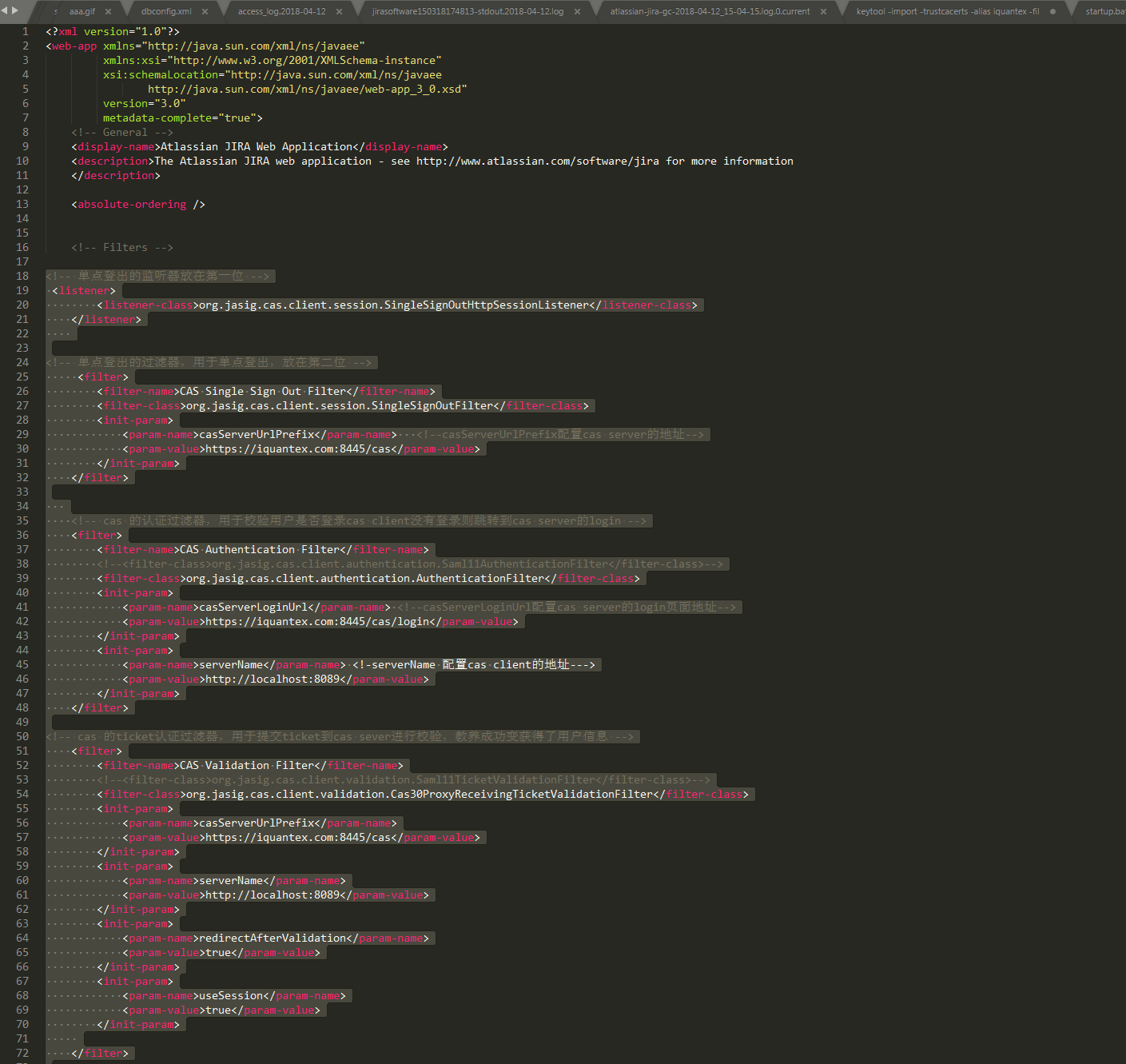

配置JIRA_HOME/atlassian-jira/WEB-INF下的web.xml,加入cas client的相关监听和过滤器,放在首位

<!-- 单点登出的监听器放在第一位 -->
 <listener>
        <listener-class>org.jasig.cas.client.session.SingleSignOutHttpSessionListener</listener-class>
    </listener>
<!-- 单点登出的过滤器，用于单点登出，放在第二位 -->
     <filter>
        <filter-name>CAS Single Sign Out Filter</filter-name>
        <filter-class>org.jasig.cas.client.session.SingleSignOutFilter</filter-class>
        <init-param>
            <param-name>casServerUrlPrefix</param-name>   <!--casServerUrlPrefix配置cas server的地址-->
            <param-value>https://iquantex.com:8445/cas</param-value>
        </init-param>
    </filter>
    <!-- cas 的认证过滤器，用于校验用户是否登录cas client没有登录则跳转到cas server的login -->
    <filter>
        <filter-name>CAS Authentication Filter</filter-name>
        <!--<filter-class>org.jasig.cas.client.authentication.Saml11AuthenticationFilter</filter-class>-->
        <filter-class>org.jasig.cas.client.authentication.AuthenticationFilter</filter-class>
        <init-param>
            <param-name>casServerLoginUrl</param-name> <!--casServerLoginUrl配置cas server的login页面地址-->
            <param-value>https://iquantex.com:8445/cas/login</param-value>
        </init-param>
        <init-param>
            <param-name>serverName</param-name> <!-serverName 配置cas client的地址--->
            <param-value>http://localhost:8089</param-value>
        </init-param>
    </filter>
<!-- cas 的ticket认证过滤器，用于提交ticket到cas sever进行校验，教养成功变获得了用户信息 -->
    <filter>
        <filter-name>CAS Validation Filter</filter-name>
        <!--<filter-class>org.jasig.cas.client.validation.Saml11TicketValidationFilter</filter-class>-->
        <filter-class>org.jasig.cas.client.validation.Cas30ProxyReceivingTicketValidationFilter</filter-class>
        <init-param>
            <param-name>casServerUrlPrefix</param-name>
            <param-value>https://iquantex.com:8445/cas</param-value>
        </init-param>
        <init-param>
            <param-name>serverName</param-name>
            <param-value>http://localhost:8089</param-value>
        </init-param>
        <init-param>
            <param-name>redirectAfterValidation</param-name>
            <param-value>true</param-value>
        </init-param>
        <init-param>
            <param-name>useSession</param-name>
            <param-value>true</param-value>
        </init-param>
    </filter>
    <!-- 使用request.getUserPrincipal()来获取用户信息 -->
    <filter>
        <filter-name>CAS HttpServletRequest Wrapper Filter</filter-name>
        <filter-class>org.jasig.cas.client.util.HttpServletRequestWrapperFilter</filter-class>
    </filter>
    <filter-mapping>
        <filter-name>CAS Single Sign Out Filter</filter-name>
        <url-pattern>/*</url-pattern>
    </filter-mapping>
    <filter-mapping>
        <filter-name>CAS Validation Filter</filter-name>
        <url-pattern>/*</url-pattern>
    </filter-mapping>
    <filter-mapping>
        <filter-name>CAS Authentication Filter</filter-name>
        <url-pattern>/*</url-pattern>
    </filter-mapping>
    <filter-mapping>
        <filter-name>CAS HttpServletRequest Wrapper Filter</filter-name>
        <url-pattern>/*</url-pattern>
    </filter-mapping>

配置seraph-config.xml:

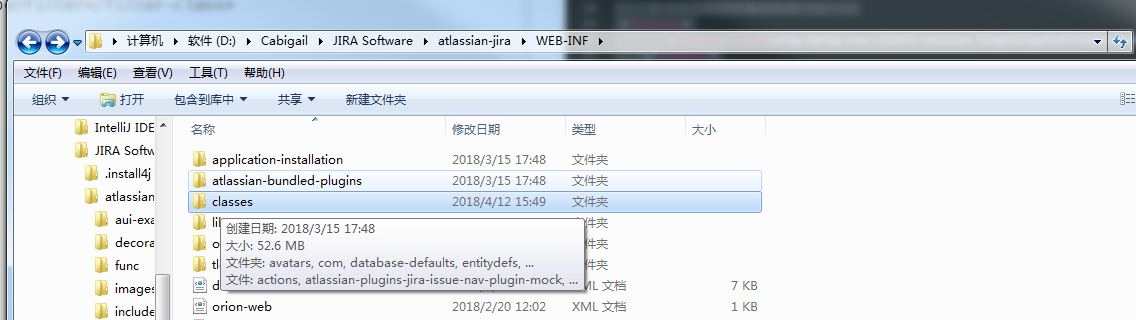

进入JIRA_HOME/atlassian-jira/WEB-INF/classes:

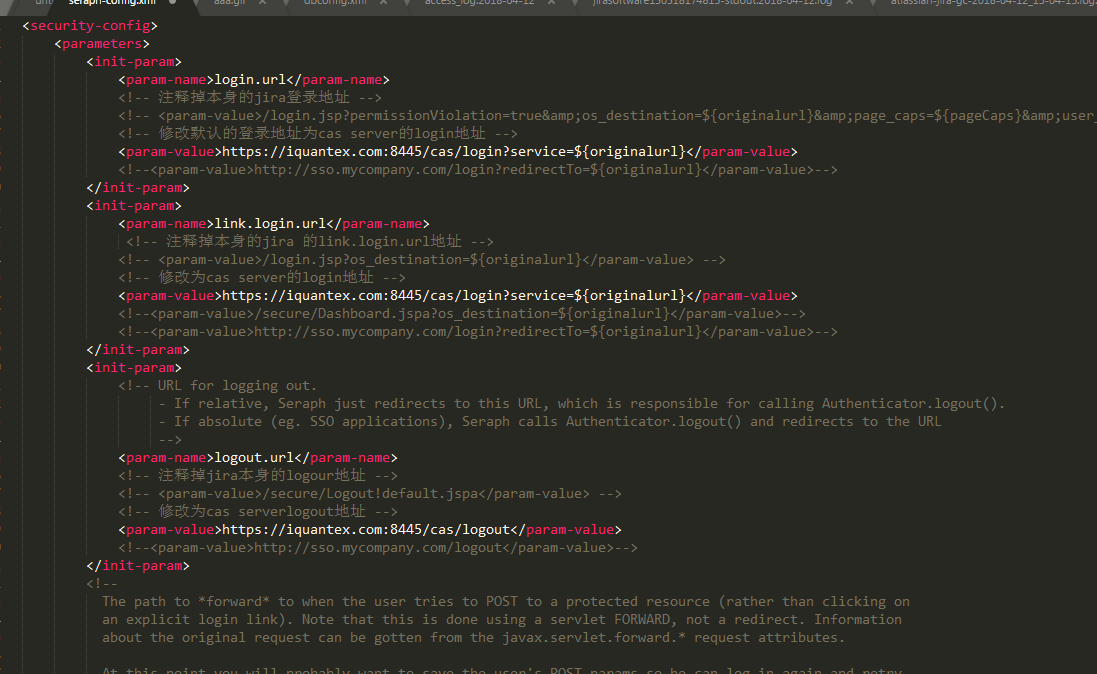

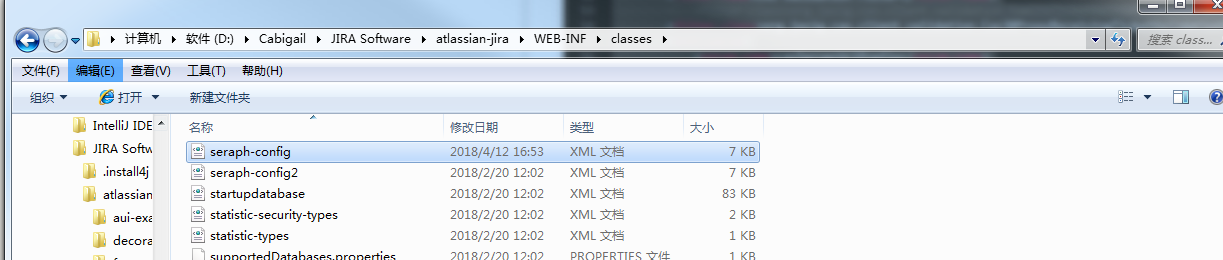

配置seraph-config.xml

修改url:
  <init-param>
            <param-name>login.url</param-name>
            <!-- 注释掉本身的jira登录地址 -->
            <!-- <param-value>/login.jsp?permissionViolation=true&amp;os_destination=${originalurl}&amp;page_caps=${pageCaps}&amp;user_role=${userRole}</param-value> -->
            <!-- 修改默认的登录地址为cas server的login地址 -->
            <param-value>https://iquantex.com:8445/cas/login?service=${originalurl}</param-value>
            <!--<param-value>http://sso.mycompany.com/login?redirectTo=${originalurl}</param-value>-->
        </init-param>
        <init-param>
            <param-name>link.login.url</param-name>
             <!-- 注释掉本身的jira 的link.login.url地址 -->
            <!-- <param-value>/login.jsp?os_destination=${originalurl}</param-value> -->
            <!-- 修改为cas server的login地址 -->
            <param-value>https://iquantex.com:8445/cas/login?service=${originalurl}</param-value>
            <!--<param-value>/secure/Dashboard.jspa?os_destination=${originalurl}</param-value>-->
            <!--<param-value>http://sso.mycompany.com/login?redirectTo=${originalurl}</param-value>-->
        </init-param>
        <init-param>
            <!-- URL for logging out.
                 - If relative, Seraph just redirects to this URL, which is responsible for calling Authenticator.logout().
                 - If absolute (eg. SSO applications), Seraph calls Authenticator.logout() and redirects to the URL
                 -->
            <param-name>logout.url</param-name>
            <!-- 注释掉jira本身的logour地址 -->
            <!-- <param-value>/secure/Logout!default.jspa</param-value> -->
            <!-- 修改为cas serverlogout地址 -->
            <param-value>https://iquantex.com:8445/cas/logout</param-value>
            <!--<param-value>http://sso.mycompany.com/logout</param-value>-->
        </init-param>

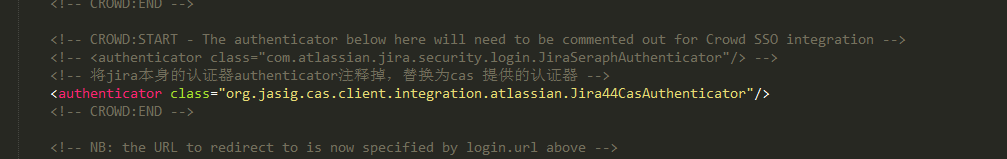

修改authenticator:
 <!-- <authenticator class="com.atlassian.jira.security.login.JiraSeraphAuthenticator"/> -->
    <!-- 将jira本身的认证器authenticator注释掉，替换为cas 提供的认证器 -->
    <authenticator class="org.jasig.cas.client.integration.atlassian.Jira44CasAuthenticator"/>

注意事项:

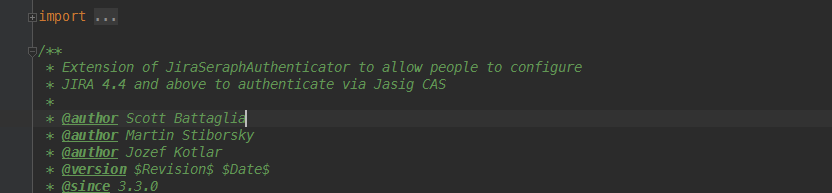

1. 查看cas-client-integration-atlassian.jar源码可知在JIRA 4.4之后认证器需要配置Jira44CasAuthenticator,而不是官网所写的JiraCasAuthenticator，由于官网没有说明，导致在此浪费了很多时间.
2. jira本身自带了jre，为了支持ssl，需要将cas server生成的jdk证书导入到jira目录下的jre中。ssl的证书具体百度，也可以参考我的这篇文章: cas5.2.7安装及部署[https://www.jianshu.com/p/a8f84df086a6]
