Docker 部署 Openresty + Lor + Openresty-china

openresty docker lor

前言

Docker部署Openresty + Lor + Openresty-china总体来说不难，但是还是有许多问题，这些问题一个是不细心造成的，一个是无知造成的，所以，我都会一一记下来。

Docker 部署 Openresty + Lor

因为我们要安装Lor所以，我们不直接使用官方镜像，而是通过修改Dockerfile来创建自己的镜像。

创建 Dockerfile：

# Dockerfile - CentOS 7
# https://github.com/openresty/docker-openresty
FROM centos:7
LABEL maintainer="Evan Wies <evan@neomantra.net>"
# Docker Build Arguments
ARG RESTY_VERSION="1.13.6.1"
ARG RESTY_LUAROCKS_VERSION="2.4.3"
ARG RESTY_OPENSSL_VERSION="1.0.2k"
ARG RESTY_PCRE_VERSION="8.41"
ARG RESTY_J="1"
ARG RESTY_CONFIG_OPTIONS="\
    --with-file-aio \
    --with-http_addition_module \
    --with-http_auth_request_module \
    --with-http_dav_module \
    --with-http_flv_module \
    --with-http_geoip_module=dynamic \
    --with-http_gunzip_module \
    --with-http_gzip_static_module \
    --with-http_image_filter_module=dynamic \
    --with-http_mp4_module \
    --with-http_random_index_module \
    --with-http_realip_module \
    --with-http_secure_link_module \
    --with-http_slice_module \
    --with-http_ssl_module \
    --with-http_stub_status_module \
    --with-http_sub_module \
    --with-http_v2_module \
    --with-http_xslt_module=dynamic \
    --with-ipv6 \
    --with-mail \
    --with-mail_ssl_module \
    --with-md5-asm \
    --with-pcre-jit \
    --with-sha1-asm \
    --with-stream \
    --with-stream_ssl_module \
    --with-threads \
    "
ARG RESTY_CONFIG_OPTIONS_MORE=""
# These are not intended to be user-specified
ARG _RESTY_CONFIG_DEPS="--with-openssl=/tmp/openssl-${RESTY_OPENSSL_VERSION} --with-pcre=/tmp/pcre-${RESTY_PCRE_VERSION}"
# 1) Install yum dependencies
# 2) Download and untar OpenSSL, PCRE, and OpenResty
# 3) Build OpenResty
# 4) Cleanup
RUN yum install -y \
        gcc \
        gcc-c++ \
        gd-devel \
        gettext \
        GeoIP-devel \
        libxslt-devel \
        make \
        perl \
        perl-ExtUtils-Embed \
        readline-devel \
        unzip \
        zlib-devel \
        git \
    && cd /tmp \
    && curl -fSL https://www.openssl.org/source/openssl-${RESTY_OPENSSL_VERSION}.tar.gz -o openssl-${RESTY_OPENSSL_VERSION}.tar.gz \
    && tar xzf openssl-${RESTY_OPENSSL_VERSION}.tar.gz \
    && curl -fSL https://ftp.pcre.org/pub/pcre/pcre-${RESTY_PCRE_VERSION}.tar.gz -o pcre-${RESTY_PCRE_VERSION}.tar.gz \
    && tar xzf pcre-${RESTY_PCRE_VERSION}.tar.gz \
    && curl -fSL https://openresty.org/download/openresty-${RESTY_VERSION}.tar.gz -o openresty-${RESTY_VERSION}.tar.gz \
    && tar xzf openresty-${RESTY_VERSION}.tar.gz \
    && cd /tmp/openresty-${RESTY_VERSION} \
    && ./configure -j${RESTY_J} ${_RESTY_CONFIG_DEPS} ${RESTY_CONFIG_OPTIONS} ${RESTY_CONFIG_OPTIONS_MORE} \
    && make -j${RESTY_J} \
    && make -j${RESTY_J} install \
    && cd /tmp \
    && rm -rf \
        openssl-${RESTY_OPENSSL_VERSION} \
        openssl-${RESTY_OPENSSL_VERSION}.tar.gz \
        openresty-${RESTY_VERSION}.tar.gz openresty-${RESTY_VERSION} \
        pcre-${RESTY_PCRE_VERSION}.tar.gz pcre-${RESTY_PCRE_VERSION} \
    && curl -fSL https://github.com/luarocks/luarocks/archive/${RESTY_LUAROCKS_VERSION}.tar.gz -o luarocks-${RESTY_LUAROCKS_VERSION}.tar.gz \
    && tar xzf luarocks-${RESTY_LUAROCKS_VERSION}.tar.gz \
    && cd luarocks-${RESTY_LUAROCKS_VERSION} \
    && ./configure \
        --prefix=/usr/local/openresty/luajit \
        --with-lua=/usr/local/openresty/luajit \
        --lua-suffix=jit-2.1.0-beta3 \
        --with-lua-include=/usr/local/openresty/luajit/include/luajit-2.1 \
    && make build \
    && make install \
    && cd /tmp \
    && rm -rf luarocks-${RESTY_LUAROCKS_VERSION} luarocks-${RESTY_LUAROCKS_VERSION}.tar.gz \
    && yum clean all \
    && ln -sf /dev/stdout /usr/local/openresty/nginx/logs/access.log \
    && ln -sf /dev/stderr /usr/local/openresty/nginx/logs/error.log
# Add additional binaries into PATH for convenience
ENV PATH=$PATH:/usr/local/openresty/luajit/bin:/usr/local/openresty/nginx/sbin:/usr/local/openresty/bin
# 安装Lor
RUN cd /tmp \
    && git clone https://github.com/sumory/lor \
    && cd lor \
    && make install \
    && rm -rf /tmp/lor
# Copy nginx configuration files
COPY docker-ng-conf/nginx.conf /usr/local/openresty/nginx/conf/nginx.conf
COPY docker-ng-conf/default.conf /etc/nginx/conf.d/default.conf
CMD ["/usr/local/openresty/bin/openresty", "-g", "daemon off;"]

创建docker-dompose

version: "2"
services:
    pcsoft:
      build: /data/docker/openresty
      ports:
        - "8080:80"
        - "8888:8888"
        - "8881:8881"
        - "8882:8882"
      # links:
      #   - "db"
      volumes:    # 注意，要么使用相对路径，要么使用绝对路径，切勿使用变量
        - ./www:/www/
      restart: always
      # networks:
      #   - ng_pc
      # command: nginx -g "daemon off;" -p /www/pcsoft/ -c /www/pcsoft/conf/nginx-dev.conf
    db:
      image: mysql:5.7
      volumes:
        - ./dbdata:/var/lib/mysql/
        # - $PWD/opchina/install:/mysql/
      expose:
        - "3306"
      ports:
        - "3306:3306"
      # restart: always
      environment:
        MYSQL_USER: root
        MYSQL_PASSWORD: root
        MYSQL_ROOT_PASSWORD: root
      restart: always
      # networks:
      #   ng_pc:
# networks:
#   ng_pc:

Docker 部署 Openresty + Openresty-china

• 拉取Openresty-china

git clone git@github.com:sumory/openresty-china.git

• 创建数据库 并写入install.sql

CREATE DATABASE `blog` DEFAULT CHARACTER SET utf8 COLLATE utf8_general_ci;

• 在根目录创建static，复制install 文件夹下的静态文件到static

[root@575bb7bcc482 openresty-china]# ls
LICENSE     README.md  conf  install    start.sh
LICENSE.md  app        docs  reload.sh  stop.sh
[root@575bb7bcc482 openresty-china]# mkdir static
[root@575bb7bcc482 openresty-china]# cd static/
[root@575bb7bcc482 static]# ls
[root@575bb7bcc482 static]# cp ../install/avatar/* ./
[root@575bb7bcc482 static]# ls
1.png  5.png  9.png  d.png  h.png  l.png  p.png  t.png  x.png
2.png  6.png  a.png  e.png  i.png  m.png  q.png  u.png  y.png
3.png  7.png  b.png  f.png  j.png  n.png  r.png  v.png  z.png
4.png  8.png  c.png  g.png  k.png  o.png  s.png  w.png
[root@575bb7bcc482 static]# cd ..
[root@575bb7bcc482 openresty-china]# ls
LICENSE     README.md  conf  install    start.sh  stop.sh
LICENSE.md  app        docs  reload.sh  static
[root@575bb7bcc482 openresty-china]# rm -rf install/
[root@575bb7bcc482 openresty-china]# ls
LICENSE     README.md  conf  reload.sh  static
LICENSE.md  app        docs  start.sh   stop.sh
[root@575bb7bcc482 openresty-china]#

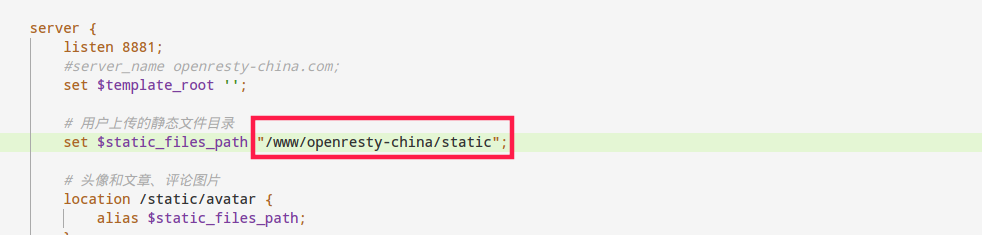

• 修改nginx配置

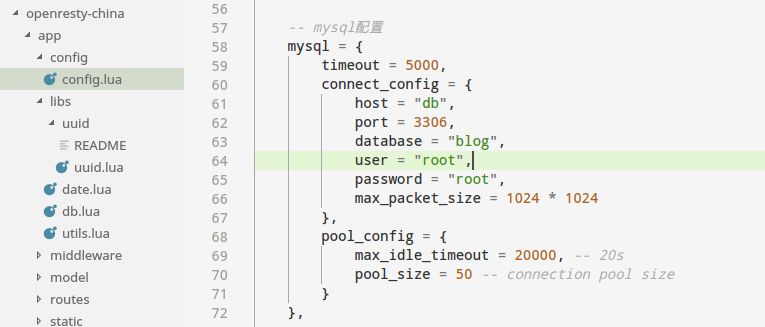

• 修改mysql链接


  • 容器中启动Openresty-china

注意的事：

1. RUN yum install -y 中写入 git，原本的Dockerfile没有装。
2. 不要想着一次把事情搞定，一定要明白什么是镜像，不要把自己的业务也加入到镜像，这样会造成镜像的不可重复使用。系统(服务）和业务一定要分清楚。
3. 定义在同一个compose文件里的所有service都会自动加入同一个network，所以也不用特意声明network。
4. 一般使用Lor在创建nginx-conf时创建两个，一个事测试，一个是上线，方便切换。
5. 执行docker-composer up 时一定要注意所在目录。

遇见的问题：

Docker文件权限问题

解决方法：一定不要关闭sudo，每条Docker命令前都要加sudo。

amor@amor:/data/docker/openresty$ docker-compose up --build -d
Building pcsoft
Traceback (most recent call last):
  File "/usr/bin/docker-compose", line 11, in <module>
    load_entry_point('docker-compose==1.8.0', 'console_scripts', 'docker-compose')()
  File "/usr/lib/python2.7/dist-packages/compose/cli/main.py", line 61, in main
    command()
  File "/usr/lib/python2.7/dist-packages/compose/cli/main.py", line 113, in perform_command
    handler(command, command_options)
  File "/usr/lib/python2.7/dist-packages/compose/cli/main.py", line 835, in up
    remove_orphans=remove_orphans)
  File "/usr/lib/python2.7/dist-packages/compose/project.py", line 382, in up
    svc.ensure_image_exists(do_build=do_build)
  File "/usr/lib/python2.7/dist-packages/compose/service.py", line 289, in ensure_image_exists
    self.build()
  File "/usr/lib/python2.7/dist-packages/compose/service.py", line 727, in build
    buildargs=build_opts.get('args', None),
  File "/usr/lib/python2.7/dist-packages/docker/api/build.py", line 54, in build
    path, exclude=exclude, dockerfile=dockerfile, gzip=gzip
  File "/usr/lib/python2.7/dist-packages/docker/utils/utils.py", line 103, in tar
    t.add(os.path.join(root, path), arcname=path, recursive=False)
  File "/usr/lib/python2.7/tarfile.py", line 2024, in add
    with bltn_open(name, "rb") as f:
IOError: [Errno 13] Permission denied: '/data/docker/openresty/dbdata/auto.cnf'

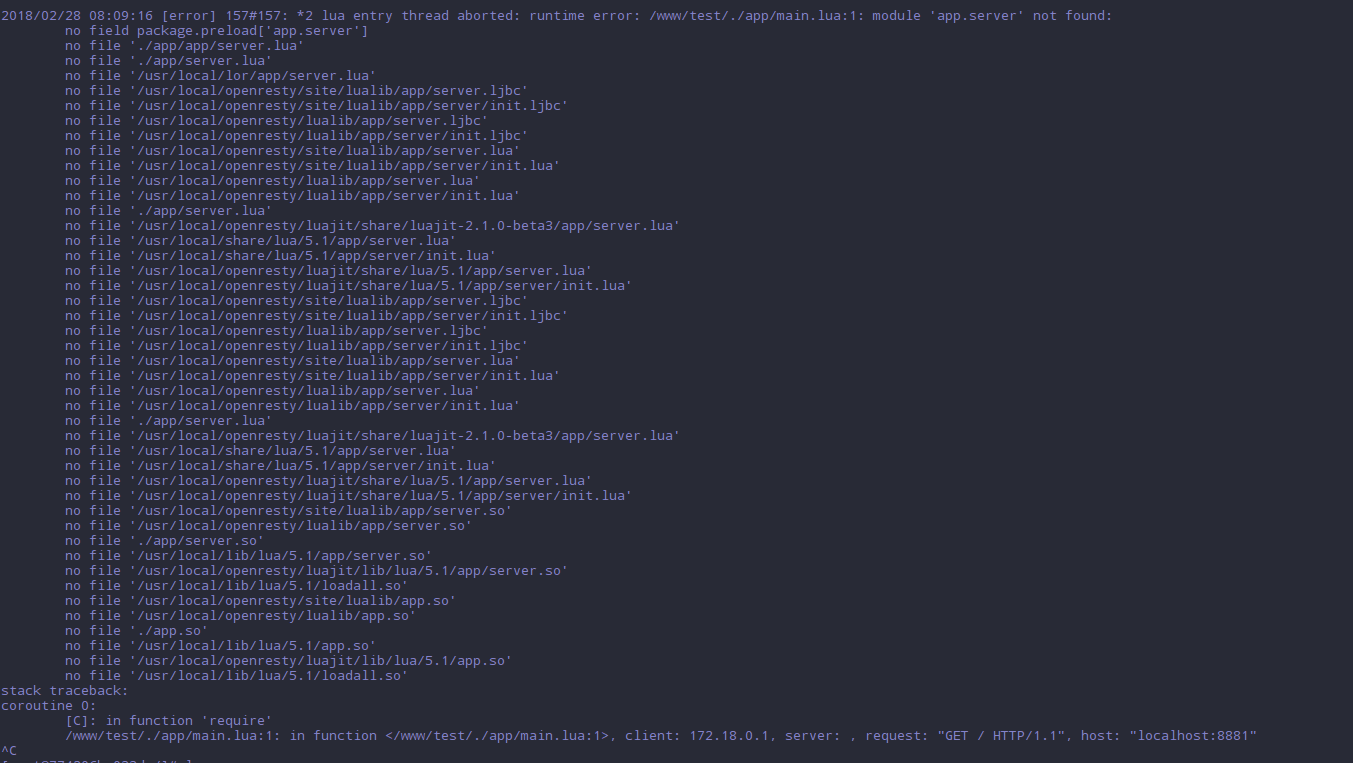

Lor 中Lua在 Nginx路径配置问题

解决办法就是修改nginx 配置文件中lua的路径。(可能会遇到新问题)

    lua_package_path "./app/?.lua;./app/library/?.lua;./app/?/init.lua;./?.lua;/usr/local/lor/?.lua;/usr/local/lor/?/init.lua;;";
    lua_package_cpath "./app/library/?.so;/usr/local/lor/?.so;;";
    lua_code_cache on; # set on @production

Mysql连接问题 1

解决方法：
进到容器里, cat /etc/resolv.conf，然后修改nginx配置

resolver 127.0.0.11;
注意：这个值一定要和容器中的resolv.conf值一致！

Mysql连接问题 2

amor@amor-PC:/data/docker/docker-openresty-lor$ sudo docker logs dockeropenrestylor_db_1
Initializing database
2018-03-06T03:13:31.337602Z 0 [Warning] TIMESTAMP with implicit DEFAULT value is deprecated. Please use --explicit_defaults_for_timestamp server option (see documentation for more details).
2018-03-06T03:13:31.338815Z 0 [ERROR] --initialize specified but the data directory has files in it. Aborting.
2018-03-06T03:13:31.338831Z 0 [ERROR] Aborting

解决方法：
保证数据挂载目录为空！

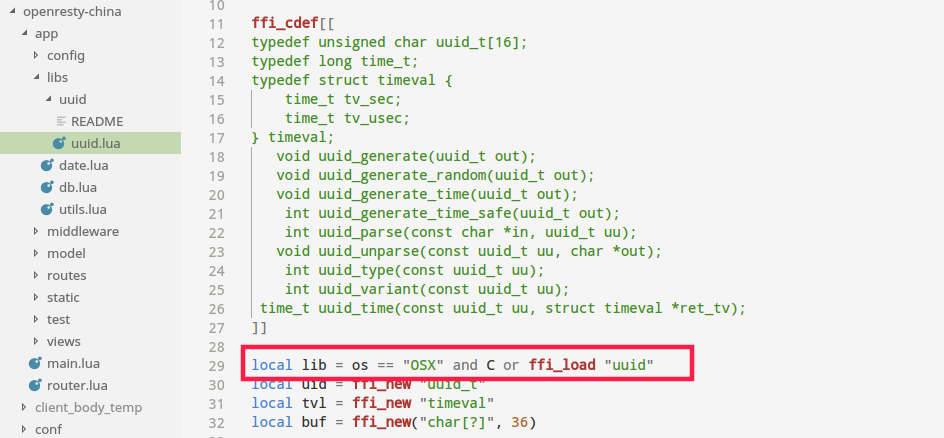

Openresty-china 500

解决方法：
修改位local lib = C
