Exercise_6:The trajectory of a cannon shell_2

physics python

Abstract

• 作业L1 2.10题强化版（引入迎面风阻）

• 作业L2 2.10题进一步升级，发展“超级辅助精确打击系统”（考虑炮弹初始发射的时候发射角度误差正负2度，速度有5%的误差，迎面风阻误差10%，以炮弹落点与打击目标距离差平方均值最小为优胜）

2.10 Generalize the program developed for the previous problem so that it can deal with situations in which the target is at a different altitude than the cannon. Consider cases in which the target is higher and lower than the cannon. Also investigate how the minimum firing velocity required to hit the target varies as the altitude of the target is varied.

Background

The Euler method we used to treat the bicycle problem can easily be generalized to deal with motion in two spatial dimensions. To be specific, we consider a projectile such as a shell shot by a cannon. We have a very large cannon in mind, and the large size will determine some of the important physics...

Main body

• 作业L1 2.10题强化版（引入迎面风阻）

• 作业L2 2.10题进一步升级，发展“超级辅助精确打击系统”（考虑炮弹初始发射的时候发射角度误差正负2度，速度有5%的误差，迎面风阻误差10%，以炮弹落点与打击目标距离差平方均值最小为优胜）

2.10 Generalize the program developed for the previous problem so that it can deal with situations in which the target is at a different altitude than the cannon. Consider cases in which the target is higher and lower than the cannon. Also investigate how the minimum firing velocity required to hit the target varies as the altitude of the target is varied.

Solution

• We set several initial target ranges and initial target heights first. Then we calculate the trajectory of the cannon shell which can fire on the target with higher accuracy. Finally we estimate the strike level.

• We also print several parametersabs(xi[-1] - self.xt)、abs(yi[-1] - self.yt) and ((xi[-1] - self.xt)**2+(yi[-1] - self.yt)**2)**0.5 to show the accuracy.

We firstly define a function pre_run_test to calculate the range of da and dxdy to save the operation time.

def pre_run_test(self):
        _a= 0.001*math.pi
        da= 0.001*math.pi
        dxdy=1.0
        aa=[]
        t=1
        a_max=0.5 * math.pi
        while(t<8):
            can2=0
            while (_a < a_max):
                can = 0
                vx = math.cos(_a) * self.v
                vy = math.sin(_a) * self.v
                xi = [0]
                yi = [0]
                while (yi[-1] >= 0):
                    xi.append(xi[-1] + self.dt * vx)
                    yi.append(yi[-1] + self.dt * vy)
                    v = ((vx + self.Vw)**2+vy**2)**0.5
                    vx = vx \
                         - math.exp(-yi[-1] / 10) * self.b_m * v * vx * self.dt
                    vy = vy \
                         - self.g * self.dt \
                         - math.exp(-yi[-1] / 10) * self.b_m * v * vy * self.dt
                    if (abs(xi[-1] - self.xt) < dxdy and abs(yi[-1] - self.yt) < dxdy):
                        can = 1
                        break
                if can:
                    aa.append(_a)
                    can2=2
                elif can==0 and can2>1: break
                _a = _a + da
            if aa==[]:
                if t==1 :print "无法命中目标"
                else:break
            _a=min(aa)-da
            a_max=max(aa)+da
            da=da/5
            dxdy=dxdy/4
            _aa =aa
            aa=[]
            print t
            t+=1
        self.a= 0.5*max(_aa)+0.5*min(_aa)
        self.dxdy=dxdy*4

The running results are normal.

And the total codes can be typed like this:

codes

• target_range=10,target_height=10

#coding:utf-8
import pylab as pl
import math
import random
class cannon_shell:
    def __init__(self,initial_velocity=0.7,g=0.0098,range=0,height=0,target_range=10,target_height=10,time_step=0.005,\
                 da=0.00001*math.pi,\
                 wind_speed=0.01,accuracy=0.01):
        self.v=initial_velocity
        self.Vw=wind_speed
        self.a=math.atan((target_height-height)/(target_range-range))
        self.g=g
        self.dt=time_step
        self.da=da
        self.x=[range]
        self.y=[height]
        self.xt=target_range
        self.yt=target_height
        self.b_m=0.04
        self.ture_x=[]
        self.ture_y=[]
        self.dxdy=accuracy
    def pre_run_test(self):
        _a= 0.001*math.pi
        da= 0.001*math.pi
        dxdy=1.0
        aa=[]
        t=1
        a_max=0.5 * math.pi
        while(t<8): #减少计算时间用
            can2=0 #辅助跳出循环用
            while (_a < a_max):
                can = 0  # 判断命中用
                vx = math.cos(_a) * self.v
                vy = math.sin(_a) * self.v
                xi = [0]
                yi = [0]
                while (yi[-1] >= 0):
                    xi.append(xi[-1] + self.dt * vx)
                    yi.append(yi[-1] + self.dt * vy)
                    v = ((vx + self.Vw)**2+vy**2)**0.5
                    vx = vx \
                         - math.exp(-yi[-1] / 10) * self.b_m * v * vx * self.dt
                    vy = vy \
                         - self.g * self.dt \
                         - math.exp(-yi[-1] / 10) * self.b_m * v * vy * self.dt
                    if (abs(xi[-1] - self.xt) < dxdy and abs(yi[-1] - self.yt) < dxdy):  # 判断是否命中
                        can = 1
                        break
                if can: #找出近似的角度
                    aa.append(_a)
                    can2=2
                elif can==0 and can2>1: break #跳出之后的多余循环
                _a = _a + da
            if aa==[]:
                if t==1 :print "无法命中目标" #第一次循环时如果无法命中则判断无法命中目标
                else:break #输出当前条件下可以达成的最高精度，使程序不至报错
            _a=min(aa)-da
            a_max=max(aa)+da
            da=da/5
            dxdy=dxdy/4
            _aa =aa #将本次正确计算的结果保存在_aa中
            aa=[]
            print t
            t+=1
        self.a= 0.5*max(_aa)+0.5*min(_aa)
        self.dxdy=dxdy*4
    def run(self):   #绘制图象用
        _a = self.a
        vx = math.cos(_a) * self.v
        vy = math.sin(_a) * self.v
        xi = [0]
        yi = [0]
        t=0
        while (yi[-1] >= 0):
            t=t+self.dt
            xi.append(xi[-1] + self.dt * vx)
            yi.append(yi[-1] + self.dt * vy)
            v = ((vx + self.Vw) ** 2 + vy ** 2) ** 0.5
            vx = vx \
                 - math.exp(-yi[-1] / 10) * self.b_m * v * vx * self.dt
            vy = vy \
                 - self.g * self.dt \
                 - math.exp(-yi[-1] / 10) * self.b_m * v * vy * self.dt
            if (abs(xi[-1] - self.xt) < self.dxdy and abs(yi[-1] - self.yt) < self.dxdy):  # 判断是否命中
                print abs(xi[-1] - self.xt), abs(yi[-1] - self.yt)
                print abs(xi[-1]), yi[-1],t
                print ((xi[-1] - self.xt)**2+(yi[-1] - self.yt)**2)**0.5
        self.ture_x = xi
        self.ture_y = yi
    def show_result(self):
        x_y=self.ture_y+self.ture_x
        xy=max(x_y)+1
        pl.plot(self.xt,self.yt,'r*')
        pl.plot(self.ture_x,self.ture_y,color="green",linewidth=1)
        pl.xlabel('x ($m$)')
        pl.ylim(0, xy)
        pl.xlim(0, xy)
        pl.ylabel('y ($m$)')
        pl.show()
a=cannon_shell()
a.pre_run_test()
a.run()
a.show_result()

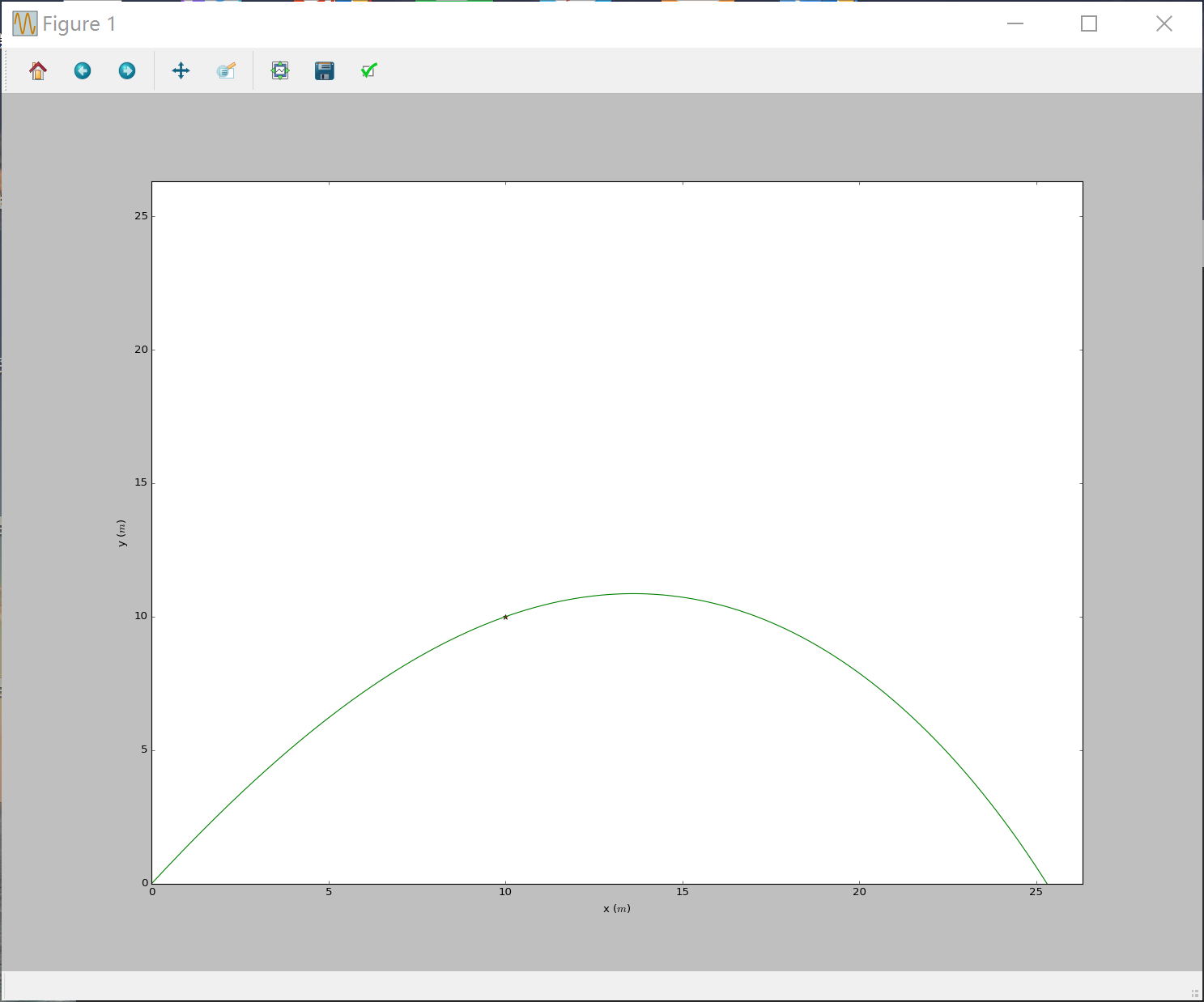

• Running result_1

!number_1

• target_range=20,target_height=5

Then initial codes can be modified like this:

def __init__(self,initial_velocity=0.7,g=0.0098,range=0,height=0,target_range=20,target_height=5,time_step=0.005,\
                 da=0.00001*math.pi,\
                 wind_speed=0.01,accuracy=0.01):
...
...
...

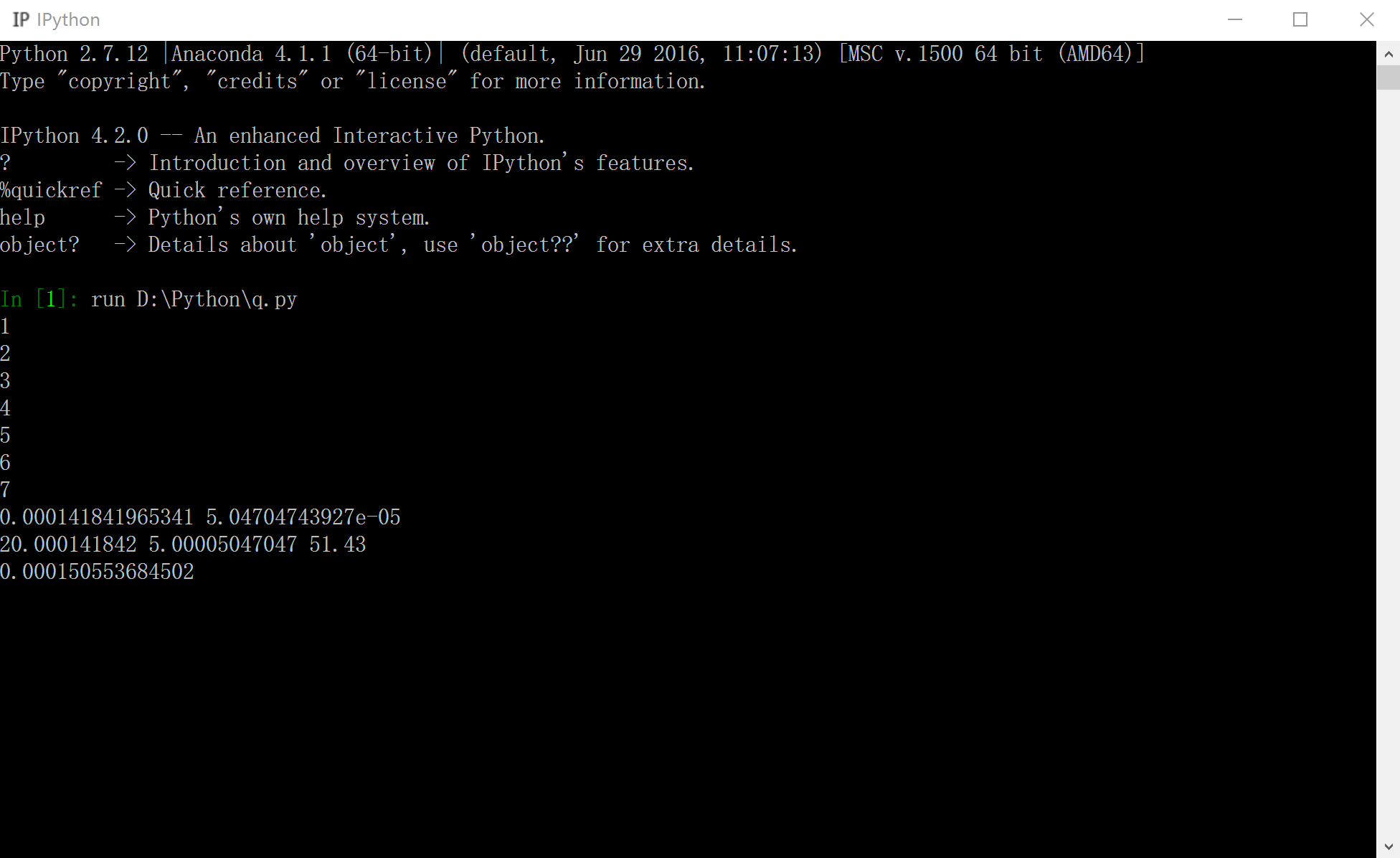

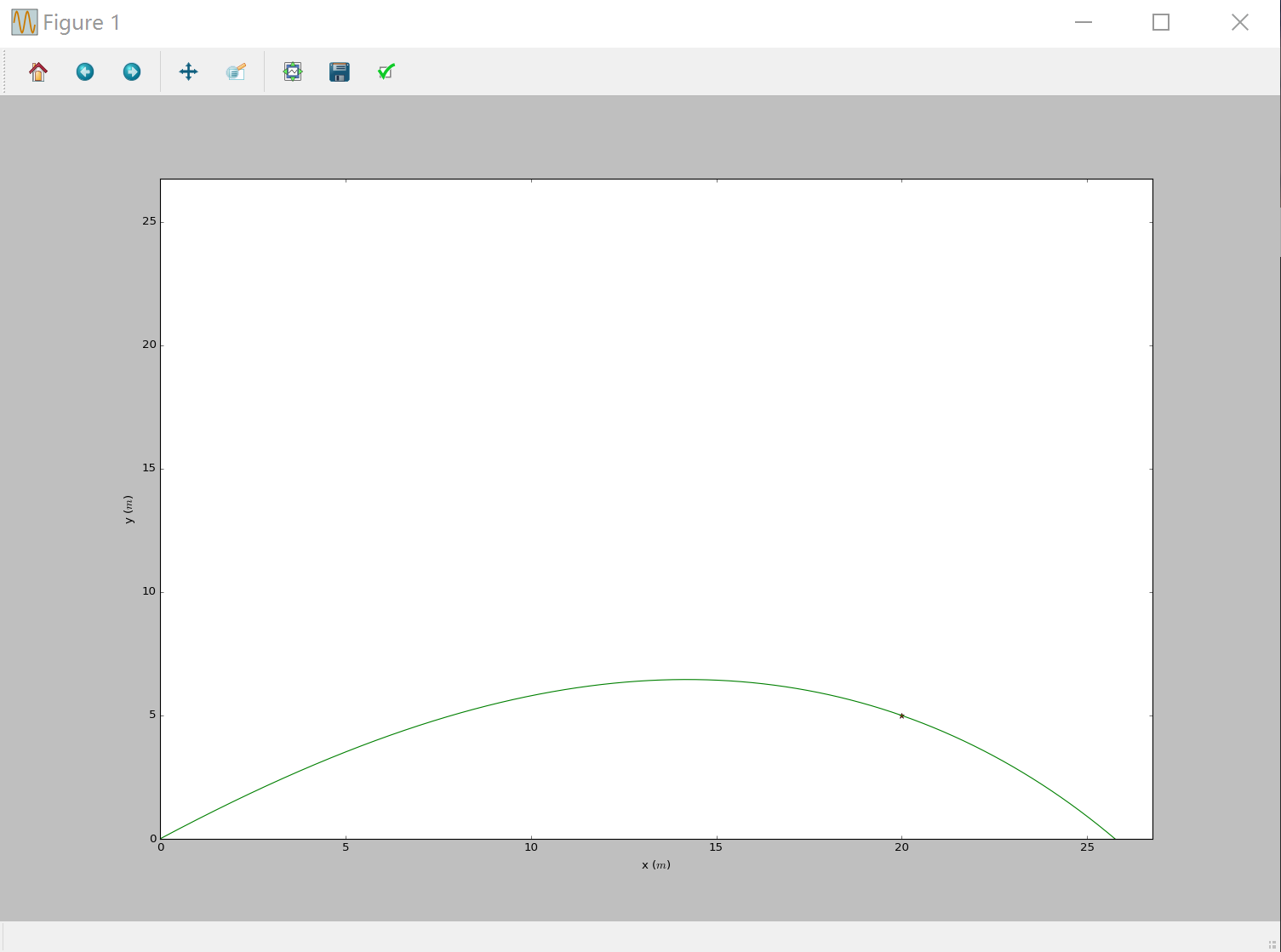

• Running result_2

Conclusion

The final number of the running result is variance.

The initial number can also be set to many other parameters as you like. And the variance can be given easily.

Acknowledgment

• Zou zhiyuan

• Lesson plan of Cai Hao:Chapter 2
