IOC,DI,AOP例程

Spring

1. 更新记录

//你没看错，这个和上次就是同一篇文章~

2. 问题

20181203

1. jar文件导入不完全(缺少Jar文件）
   这个问题太蠢了……就不写了……
   报错：不记得了 貌似是missingClass……

2. AOP代理混乱（原因待查）
   报错：
   Unsatisfied dependency expressed through field 'car'; nested exception is org.springframework.beans.factory.BeanNotOfRequiredTypeException: Bean named 'car' is expected to be of type 'object.Car' but was actually of type 'object.$Proxy15'

   处理：

   • Java配置：@EnableAspectJAutoProxy(proxyTargetClass = true)
   • XML配置：<aop:config proxy-target-class="true">

3. args（）导入参数问题
   问题：错误的在声明通用切点处导入参数

3. 总结

本程序实现了Spring框架的AOP和DI功能

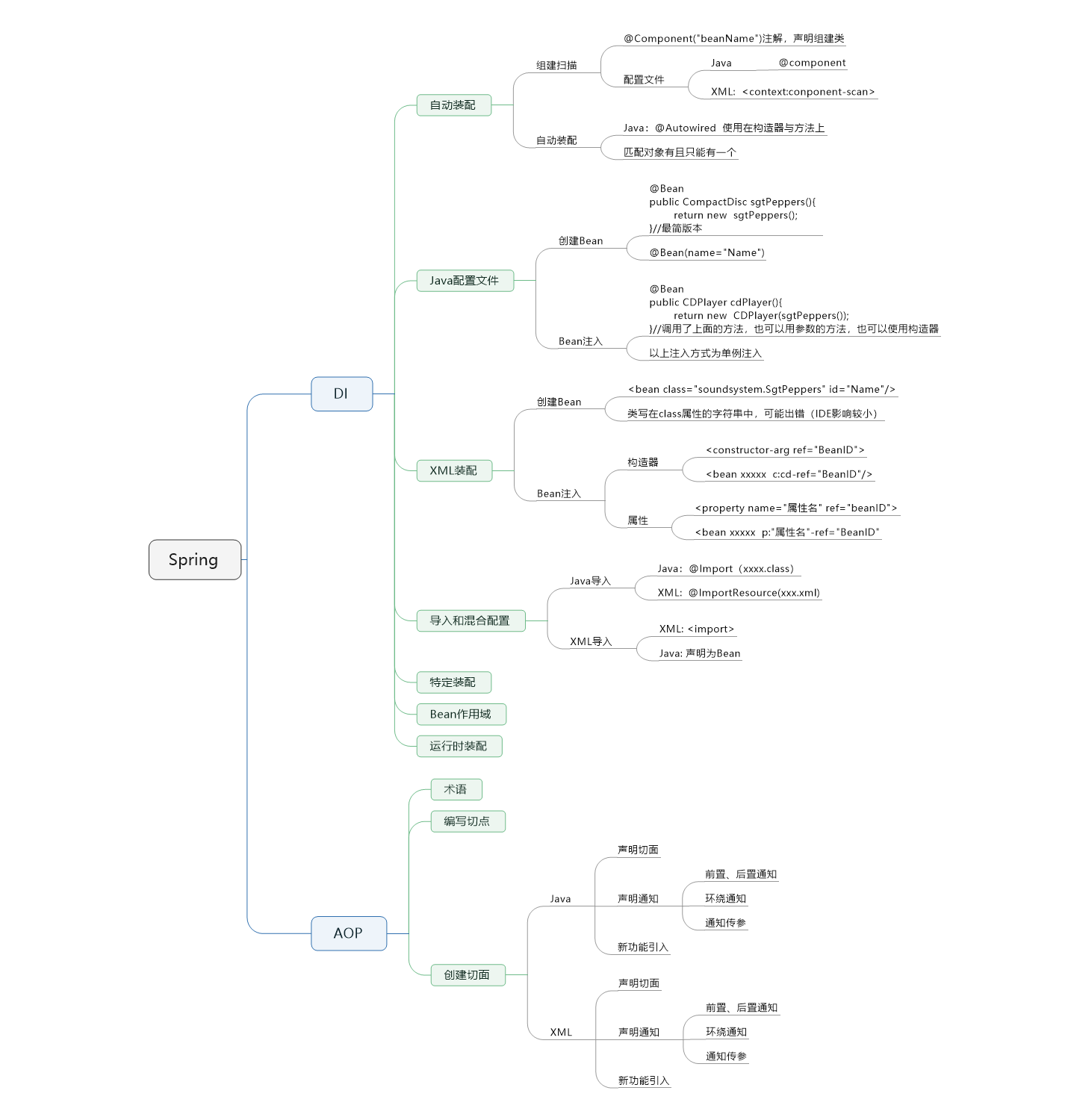

------------------------------（该思维导图未完）-----------------------------
具体技术细节参见《Spring实战》在此不予赘述

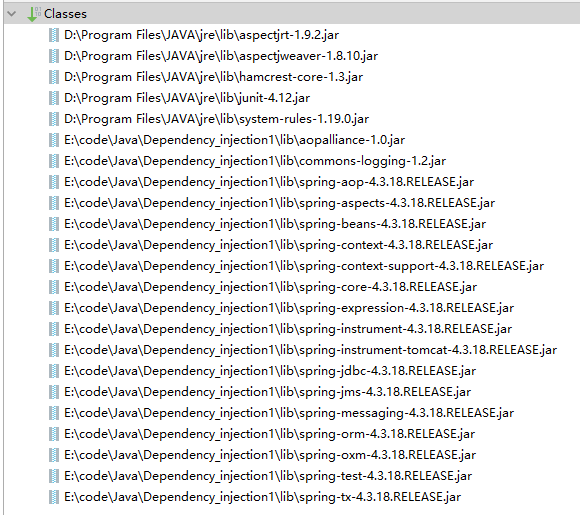

4. 依赖包：

（导入了AOP相关包）

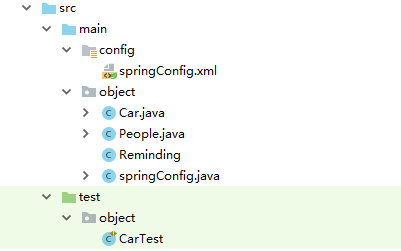

5. 文件目录：

springConfig.xml、springConfig.java为Sping的设置文件（两个文件作用一致、仅仅是两种不同的实现）

Car.java、People.java 待创建为Bean的组建类。在程序中，我们要将People类注入Car类中，实现控制反转的功能。

CarTest验证Bean是否成功创建、验证是否成功注入。

Reminding：用于AOP实验（目前只有一个环绕通知）

6. 具体代码：

springConfig.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:c="http://www.springframework.org/schema/c"
       xmlns:p="http://www.springframework.org/schema/p"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:aop="http://www.springframework.org/schema/aop"
       xmlns:context="http://www.springframework.org/schema/context"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd"
>
    <bean class="object.People" id="people"/>
    <bean class="object.Car" id="car">
        <constructor-arg name="people" ref="wangZiXuan"/>
    </bean>
        <!--<constructor-arg ref="people" />-->
    <bean class="object.Reminding" id="reminding"/>
    <bean class="object.WangZiXuan" id="wangZiXuan"/>
    <aop:config proxy-target-class="true">//<!--这是一个环绕通知-->，
        <aop:aspect ref="reminding">
            <aop:pointcut id="printSpeed" expression="execution(* object.Car.printSpeed(int)) "/><!--通知通用连接点声明-->
            <aop:around
                    pointcut="execution(* object.Car.printSpeed(int)) and args(maxSpeed)"
                    method="saftyFirst"/> <!--↑和上面那个东西是等价的-->
        </aop:aspect>
    </aop:config>
</beans>

springConfig.Java

package object;
import object.*;
import org.aspectj.lang.annotation.Before;
import org.springframework.beans.factory.BeanFactory;
import org.springframework.beans.factory.config.ConfigurableBeanFactory;
import org.springframework.context.annotation.*;
import org.springframework.core.env.Environment;
import org.springframework.core.type.AnnotatedTypeMetadata;
import org.springframework.aop.*;
@Configuration
//@ComponentScans() //自动扫描并生成bean
//@ComponentScan(basePackageClasses = {Car.class})
@EnableAspectJAutoProxy(proxyTargetClass = true)
public class springConfig {
    @Bean
    @Primary //首要注入的Bean
    public People peopleBean() {
        return new People();
    }
    @Bean
    @Scope(ConfigurableBeanFactory.SCOPE_SINGLETON) //限制Bean的作用域（当前为单例）
    public Car carBean(People people) {
        return new Car(people);
    }
    @Bean
    @Conditional(IsWangZiXuan.class) //判断是否启用Bean
    public WangZiXuan WangZiXuanBean() {
        return new WangZiXuan();
    }
    @Bean
    public Reminding reminding() {
        return new Reminding();
    }
}
class IsWangZiXuan implements Condition{
//Bean判断类，要实现condition接口
//还没弄懂，写个return true;先放着
    public boolean matches(ConditionContext context, AnnotatedTypeMetadata metadata){
        Environment env = context.getEnvironment();
       //return env.containsProperty("Car");
        return true;
    }
}

Car.java

package object;
import org.junit.contrib.java.lang.system.SystemOutRule;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;
@Component
 public class Car implements Cars {
    private int speed;
    private People people;
    private int maxSpeed;
    Car(People people){
        this.people=people;
        this.speed=people.favoriteSpeed;
        this.maxSpeed=120;
    }
     @Autowired
     public void setPeople(People people){
         this.people=people;
         speed=people.favoriteSpeed;
     }
     public void run(){
         this.speed=people.favoriteSpeed;
     }
     public int getSpeed(){
         return speed;
     }
     public void printSpeed(int maxSpeed){
        System.out.print(speed);
    }
     public void printFavoriteSpeed(){
         System.out.print(people.getFavoriteSpeed());
     }
    public int getMaxSpeed() {
        return maxSpeed;
    }
}
interface Cars{
    public void setPeople(People people);
    public void run();
    public int getSpeed();
}
interface Cars{
    public void setPeople(People people);
    public void run();
    public int getSpeed();
}

People.java

package object;
import org.springframework.stereotype.Component;
@Component
public class People {
    int  favoriteSpeed=100;
    public int getFavoriteSpeed() {
        return favoriteSpeed;
    }
    public void setFavoriteSpeed(int favoriteSpeed) {
        this.favoriteSpeed = favoriteSpeed;
    }
}
@Component
class WangZiXuan extends People{
    int tall;
    WangZiXuan(){
        this.favoriteSpeed=1000;
        this.tall=170;
    }
    public int getTall() {
        return tall;
    }
    public void setTall(int tall) {
        this.tall = tall;
    }
}

Reminding.java

package object;
import org.aspectj.lang.*;
import org.aspectj.lang.annotation.Aspect;
import org.aspectj.lang.annotation.Before;
import org.aspectj.lang.annotation.Pointcut;
import org.springframework.stereotype.Component;
import org.springframework.aop.aspectj.*;
@Aspect
@Component
public class Reminding {
//    @Pointcut("execution(* object.Car.printSpeed(..))")//Java配置文件的 定义切点注释
//    public void safty(){} //这个也是的
//
//    @Before("safty()")    //这个还是的（但是目前用的是XML 所以这个注释就没用了）
    public void saftyFirst(ProceedingJoinPoint JP,int maxSpeed){
    //环绕通知（之前写了前置和后置通知，不过被替换为更复杂的环绕通知）
        try {
        System.out.println("Safty First,Max speed is "+maxSpeed);//前置
            JP.proceed(); //执行的程序在这
        System.out.println("\nPark Car");//后置
        }catch (Throwable e){
            System.out.println("You die");//异常处理
        }
    }
}

CarTest.java

package object;
import org.junit.Rule;
import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.test.context.ContextConfiguration;
import org.springframework.test.context.junit4.SpringJUnit4ClassRunner;
import static org.junit.Assert.*;
import org.junit.contrib.java.lang.system.SystemOutRule;
@RunWith(SpringJUnit4ClassRunner.class)
@ContextConfiguration(locations = "/config/springConfig.xml")
public class CarTest {
    @Autowired
    private Car car;
    @Autowired
    private People people;
    @Rule
    public final SystemOutRule log=new SystemOutRule().enableLog();
    @Test
    public void isNOtNull(){
        assertNotNull(car);
    }
    @Test
    public void  peopleIsNotNull(){
        assertNotNull(people);
    }
    @Test
    public void getMaxSpeed(){
        car.printSpeed();
        assertEquals("100",log.getLog());
    }
}
