XXXXXXXXXXXXX 实验

未分类

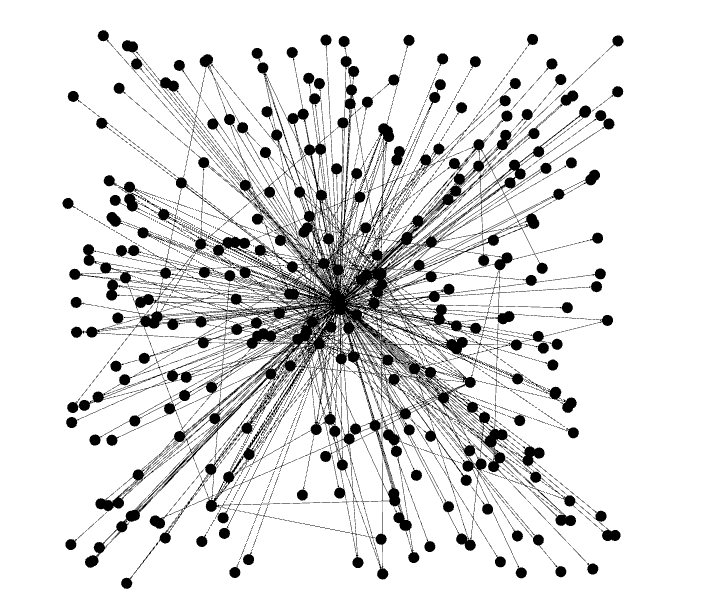

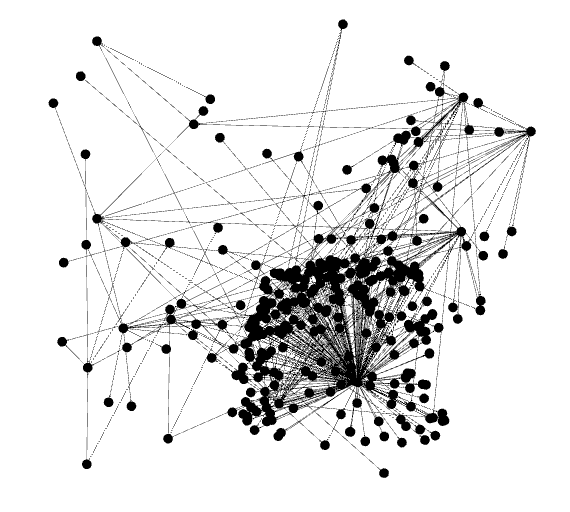

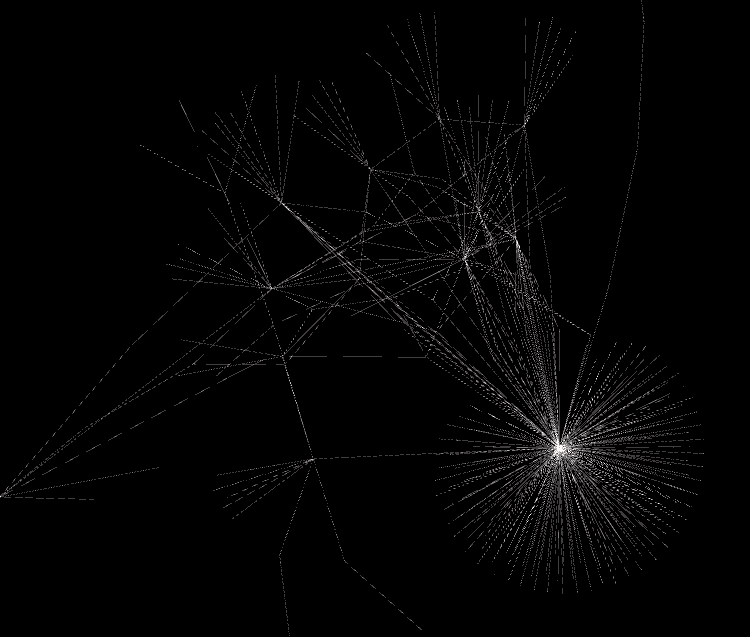

在Source上施加引力
会导致中心聚集

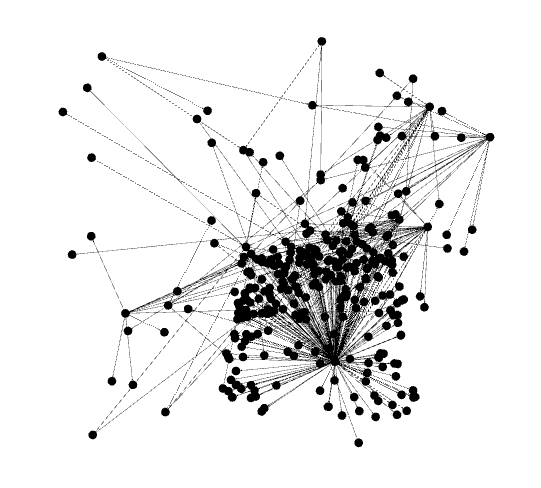

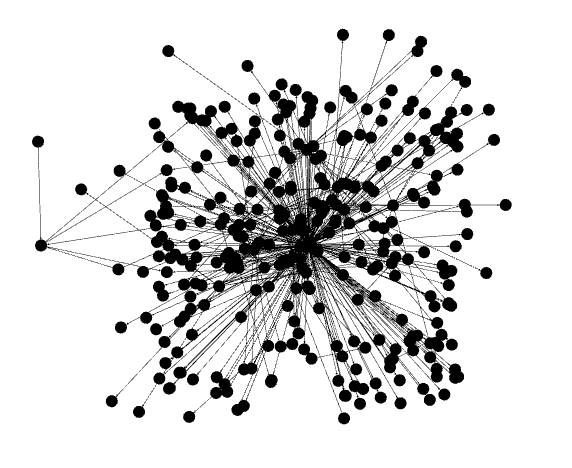

在Target上施加引力

用每次加和的结果
斥力ok
引力ok
更新时的判断ok
dist>0 ok

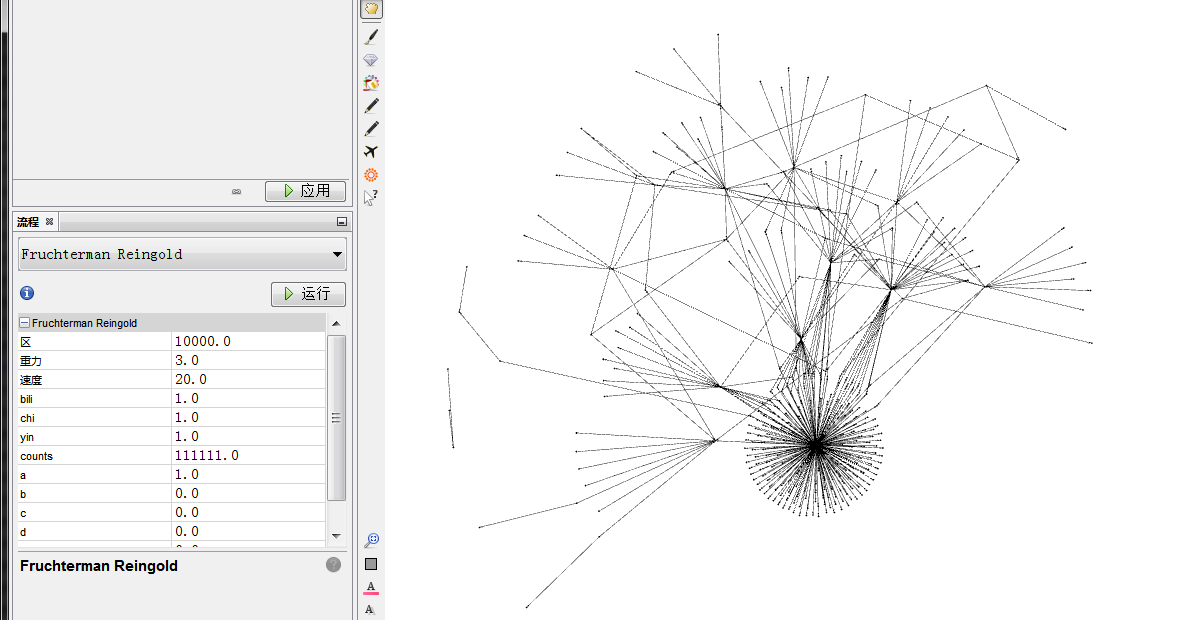

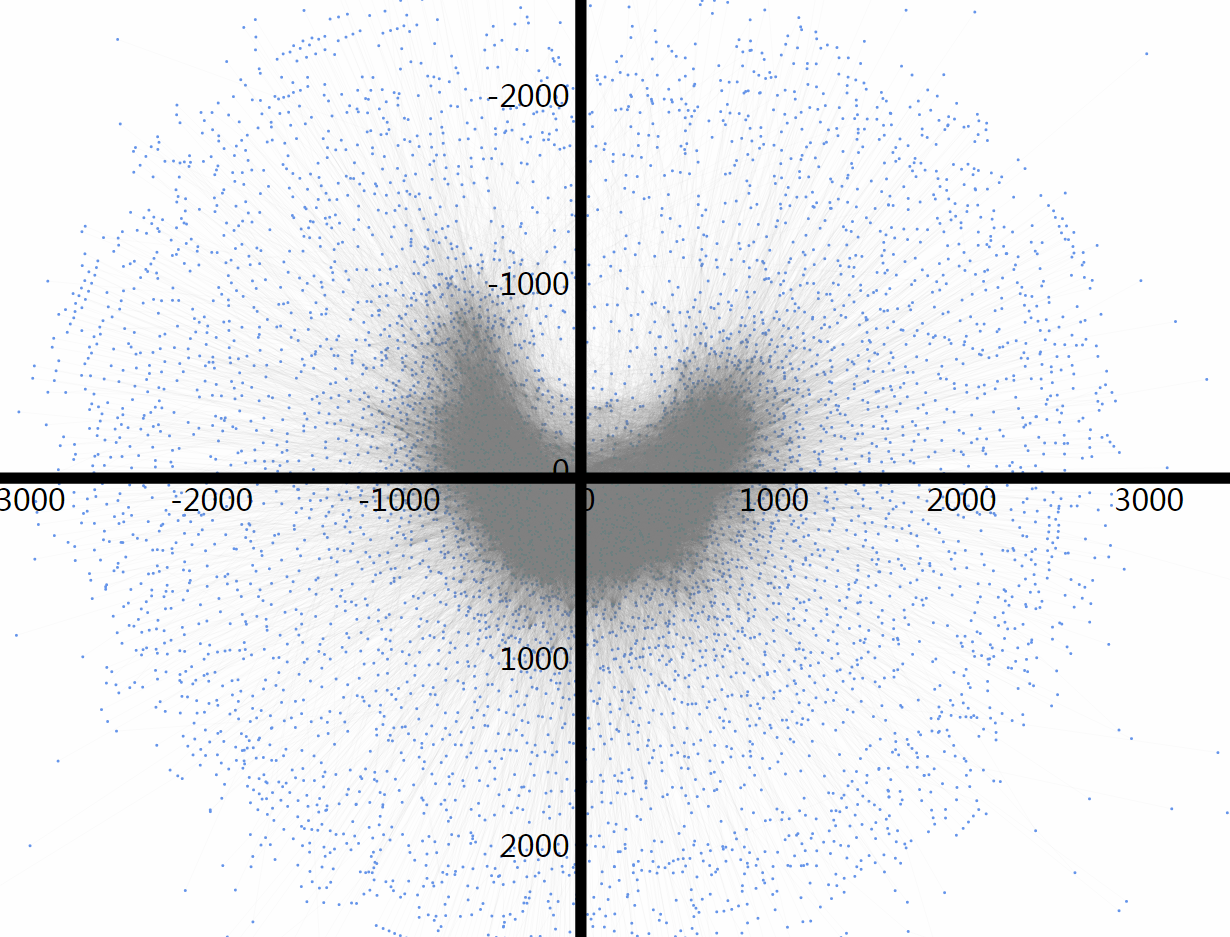

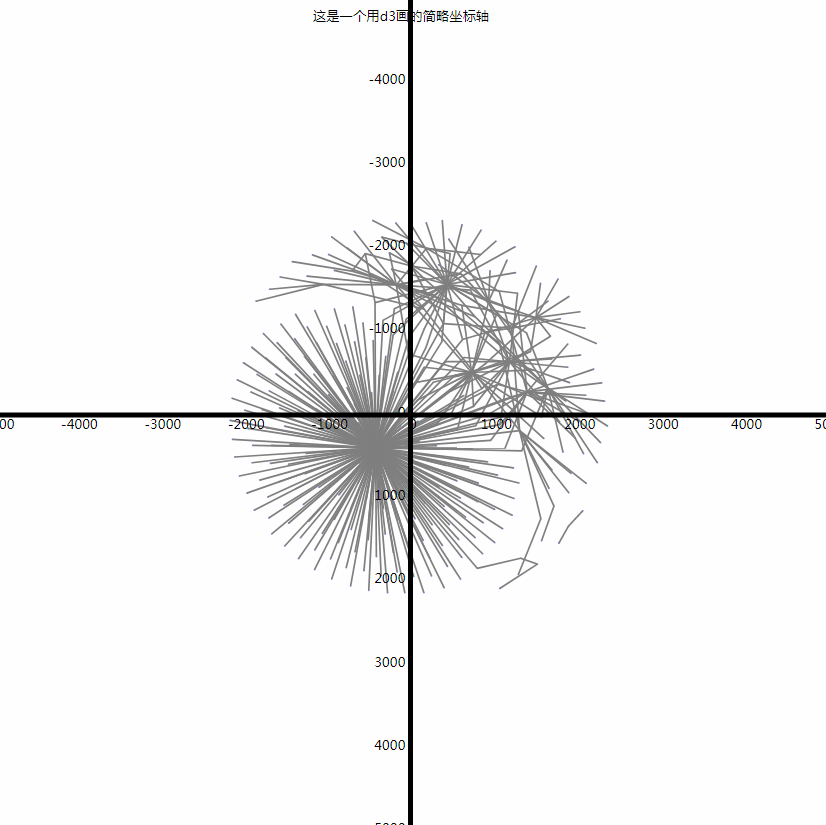

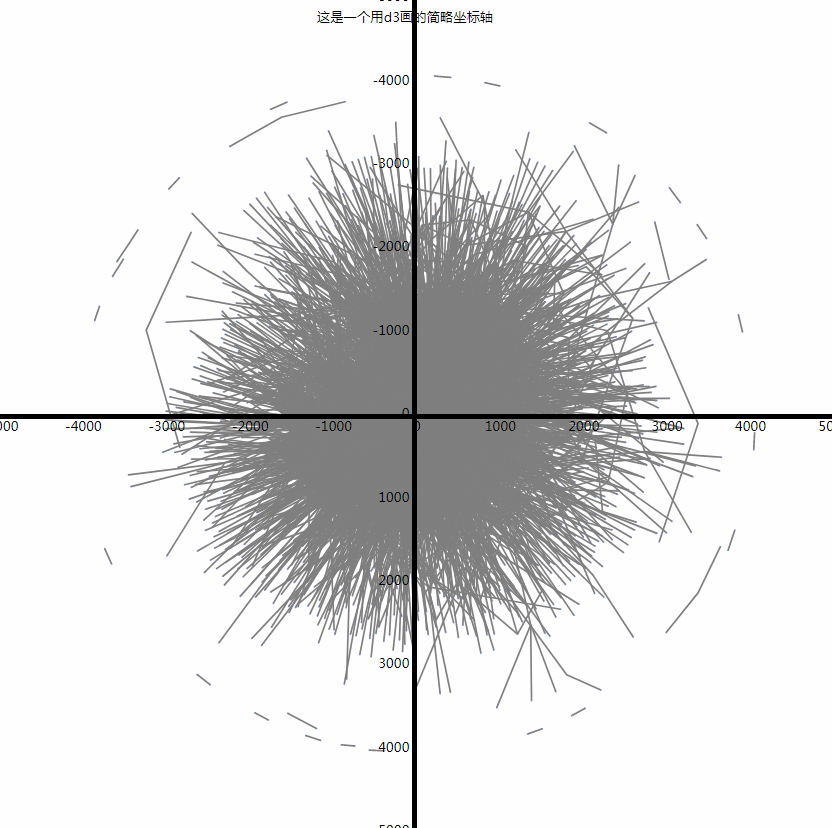

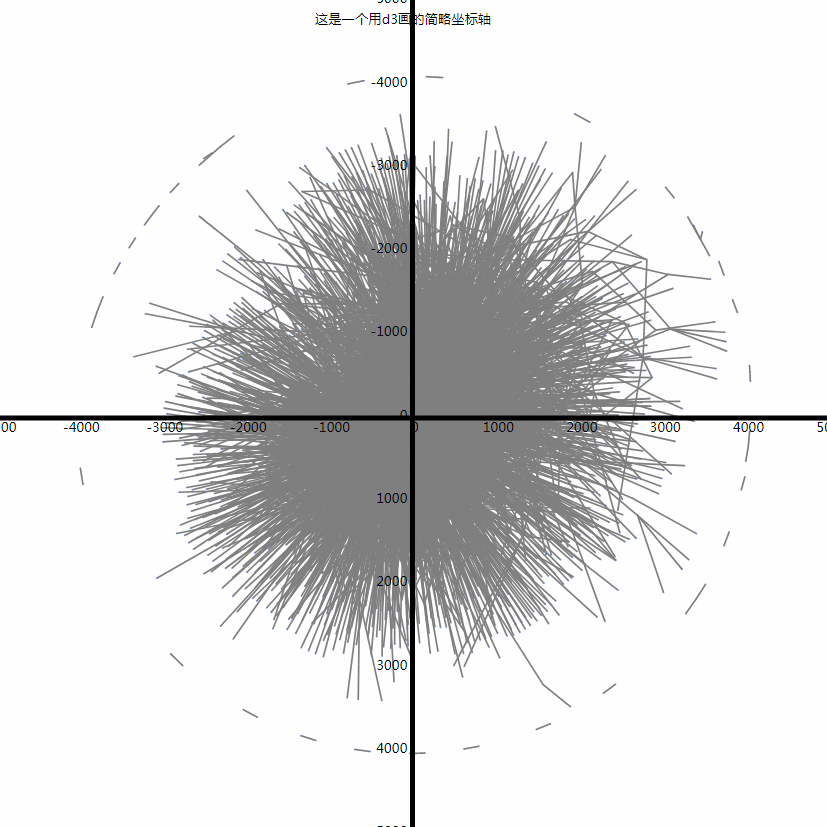

html d3 要改 现在是正负500的矩形随机初始

每次整合后更新坐标，即加粗更新粒度(双向引力，类似单项引力)

*/          Map<String,Float> map = new HashMap<String,Float>();
            for (Edge E : edges) {
                // Idem, pour tous les noeuds on applique la force d'attraction
                Node Source = E.getSource();
                Node Target = E.getTarget();
                float xDist = Source.x() - Target.x();
                float yDist = Source.y() - Target.y();
               // System.out.println(Source.x()+","+Source.y()+","+Target.x()+","+Target.y());
                float dist = (float) Math.sqrt(xDist * xDist + yDist * yDist);
                float attractiveF = dist * dist / k;
                if (dist > 0) {
                    /*
                    ForceVectorNodeLayoutData sourceLayoutData = Source.getLayoutData();
                    sourceLayoutData.dx -= xDist / dist * attractiveF;
                    sourceLayoutData.dy -= yDist / dist * attractiveF;
                    ForceVectorNodeLayoutData targetLayoutData = Target.getLayoutData();
                    targetLayoutData.dx += xDist / dist * attractiveF;
                    targetLayoutData.dy += yDist / dist * attractiveF;
                    */
                    //System.out.println("dx = "+(xDist / dist * attractiveF)+", dy = "+(yDist / dist * attractiveF));
                    if(map.containsKey(Source.getLabel())){
                        map.put(Source.getLabel()+'x', map.get(Source.getLabel()+'x') + xDist / dist * attractiveF);
                        map.put(Source.getLabel()+'y', map.get(Source.getLabel()+'y') + yDist / dist * attractiveF);
                    }else{
                        map.put(Source.getLabel()+'x', xDist / dist * attractiveF);
                        map.put(Source.getLabel()+'y', yDist / dist * attractiveF);
                    }
                    if(map.containsKey(Target.getLabel())){
                        map.put(Target.getLabel()+'x', map.get(Target.getLabel()+'x') + xDist / dist * attractiveF);
                        map.put(Target.getLabel()+'y', map.get(Target.getLabel()+'y') + yDist / dist * attractiveF);
                    }else{
                        map.put(Target.getLabel()+'x', xDist / dist * attractiveF);
                        map.put(Target.getLabel()+'y', yDist / dist * attractiveF);
                    }
                }
            }
            for (Edge E : edges) {
                Node Source = E.getSource();
                ForceVectorNodeLayoutData sourceLayoutData = Source.getLayoutData();
                sourceLayoutData.dx -= map.get(Source.getLabel()+'x');
                sourceLayoutData.dy -= map.get(Source.getLabel()+'y');
                Node Target = E.getTarget();
                ForceVectorNodeLayoutData targetLayoutData = Target.getLayoutData();
                targetLayoutData.dx += map.get(Target.getLabel()+'x');
                targetLayoutData.dy += map.get(Target.getLabel()+'y');
            }

引力双向全加 ok

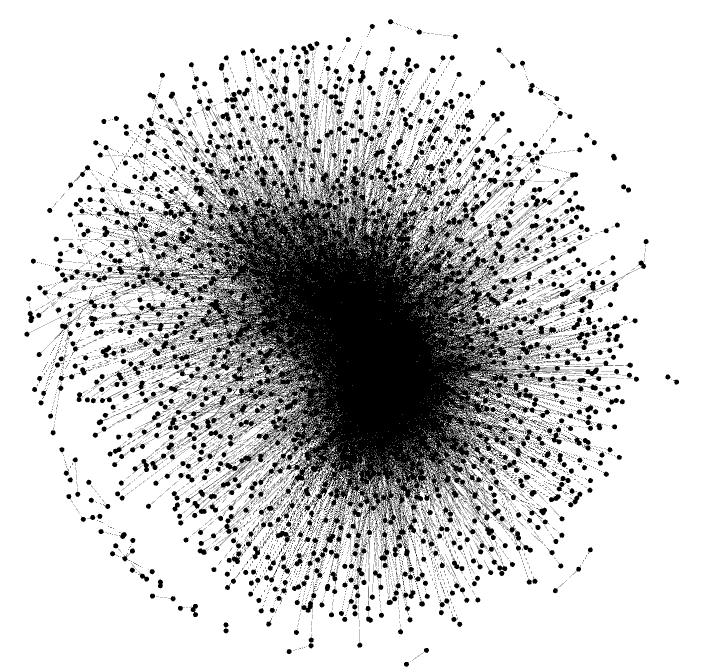

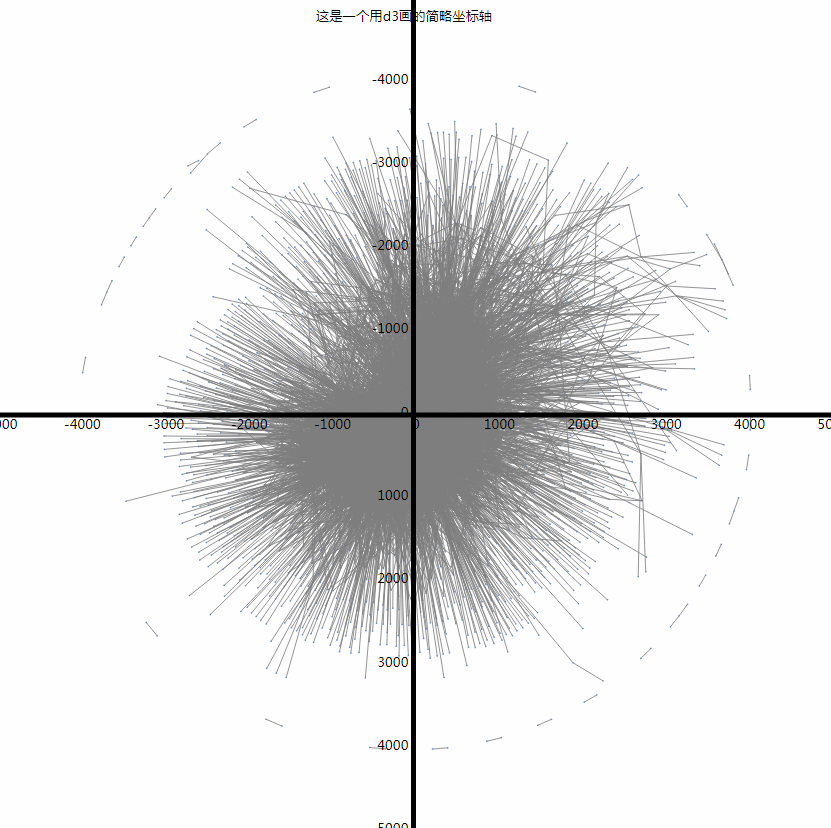

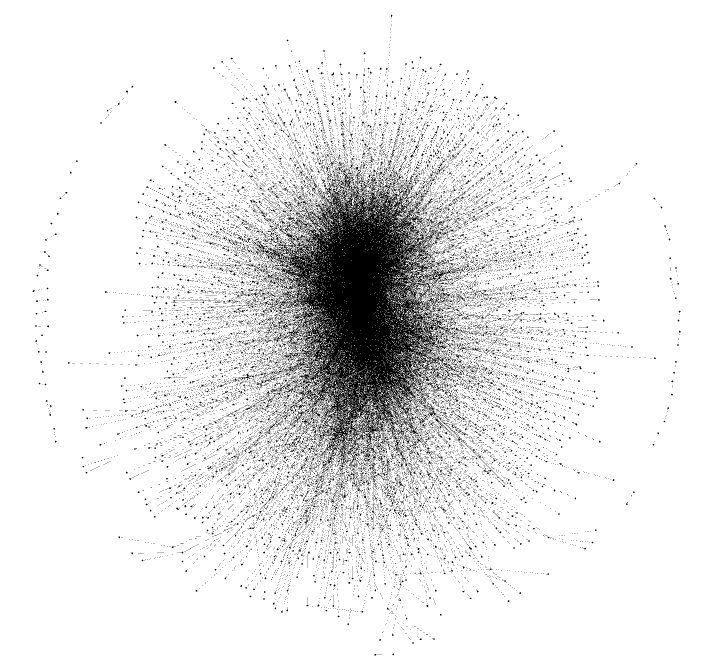

引力斥力全加 860次迭代

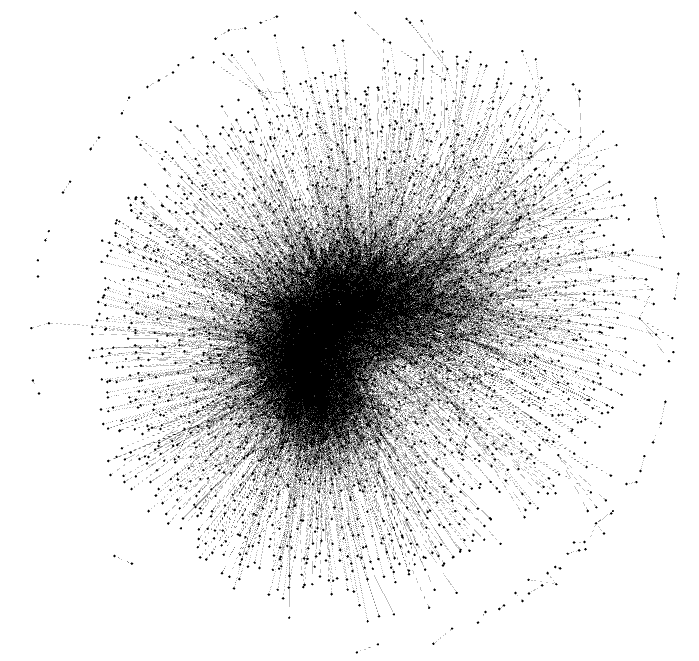

引力斥力全加 200次迭代

400次 Vote

600次 Vote

800次 Vote

700 重力= 3

400 重力= 0

速度100 次数200 重力10

huyifan 默认

400 重力 10 速度 10

800 重力 3 速度 20

800 重力 3 速度 10

> Area               : 10000
> Spring constant    : 200.56236303005485
> Graph data and area were prepared sucessfully.
> Graph layout finished.
> Size of the graph  : 2485  nodes, 16173 edges.
> DONE!
> Use Time: 847773ms

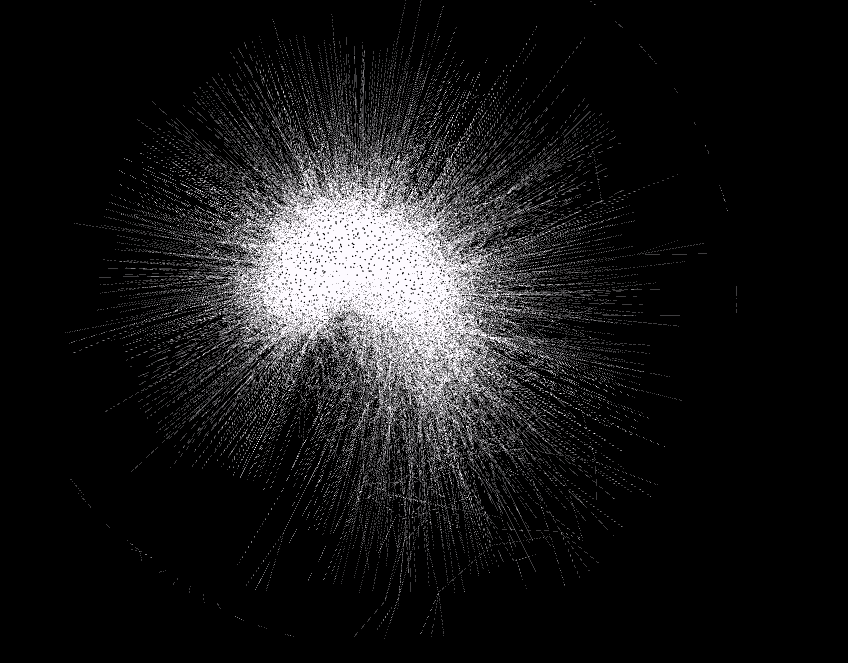

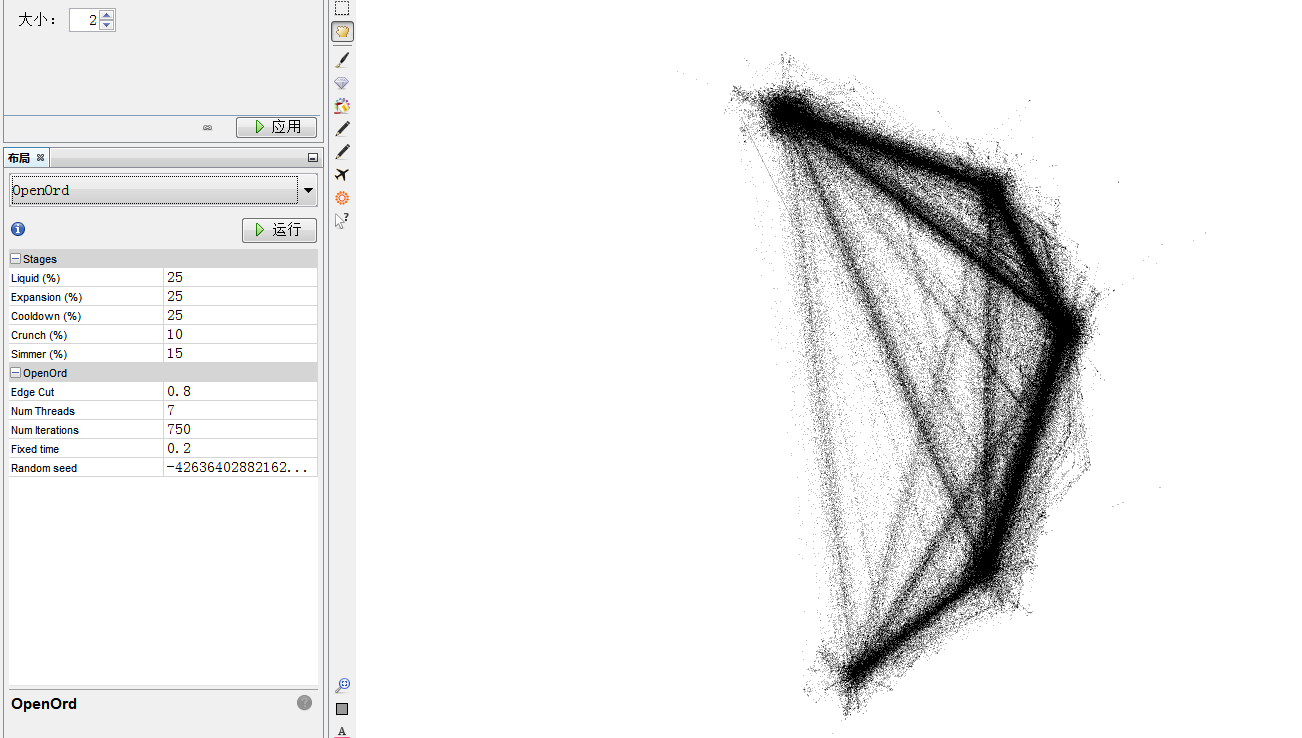

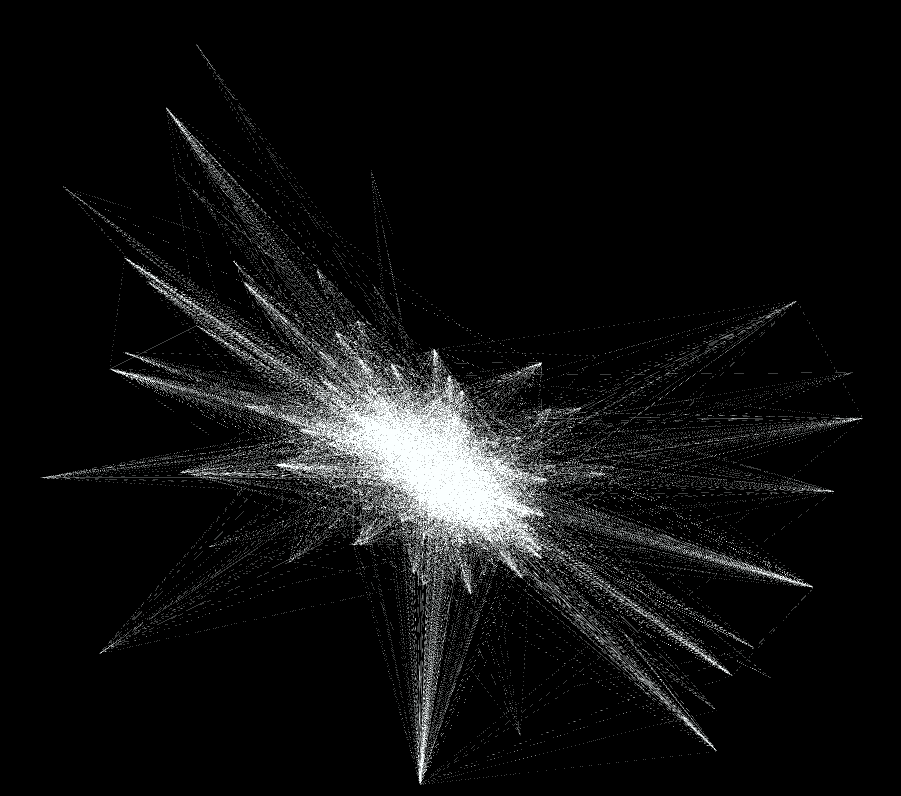

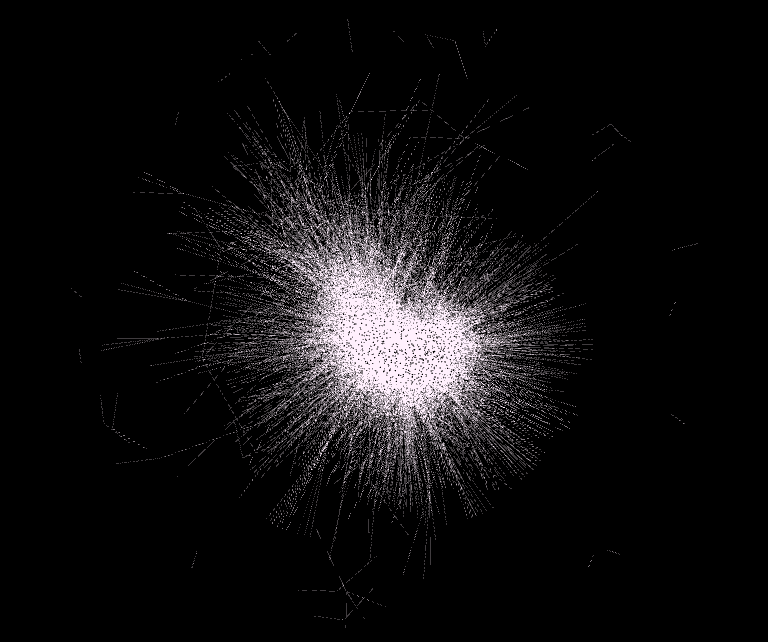

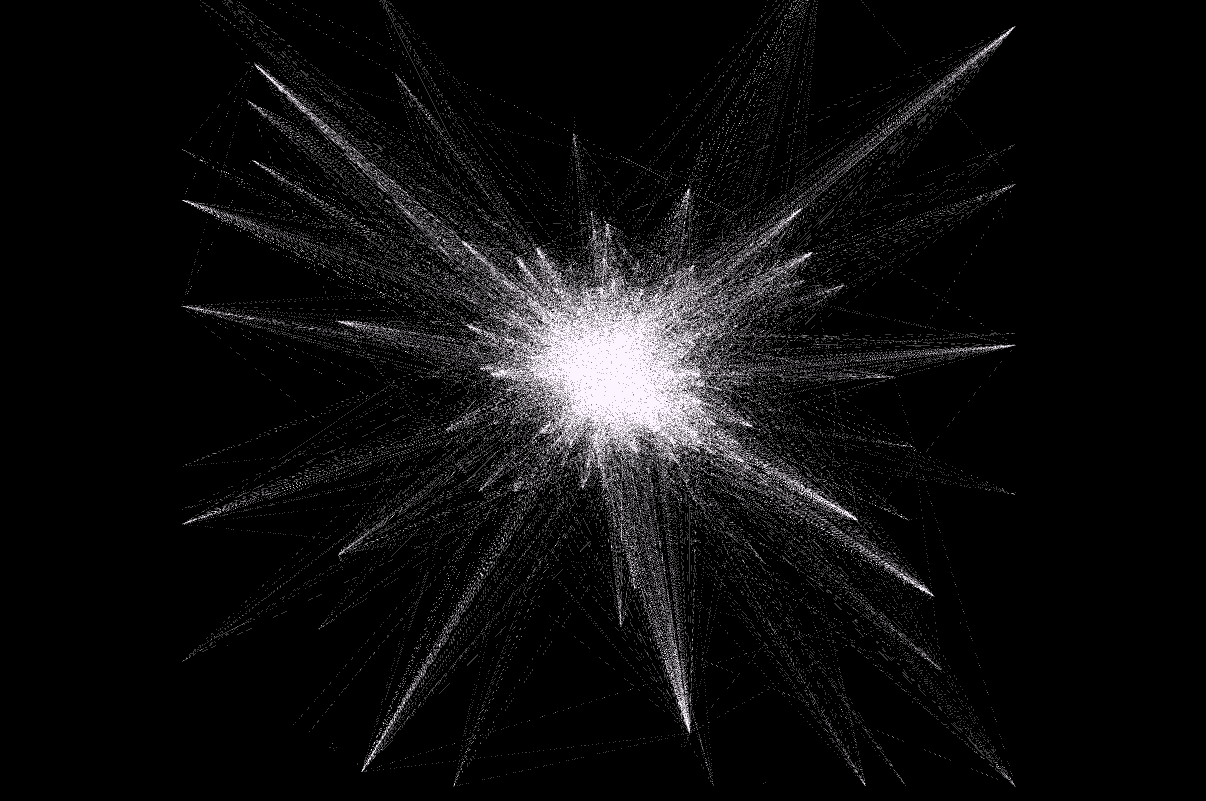

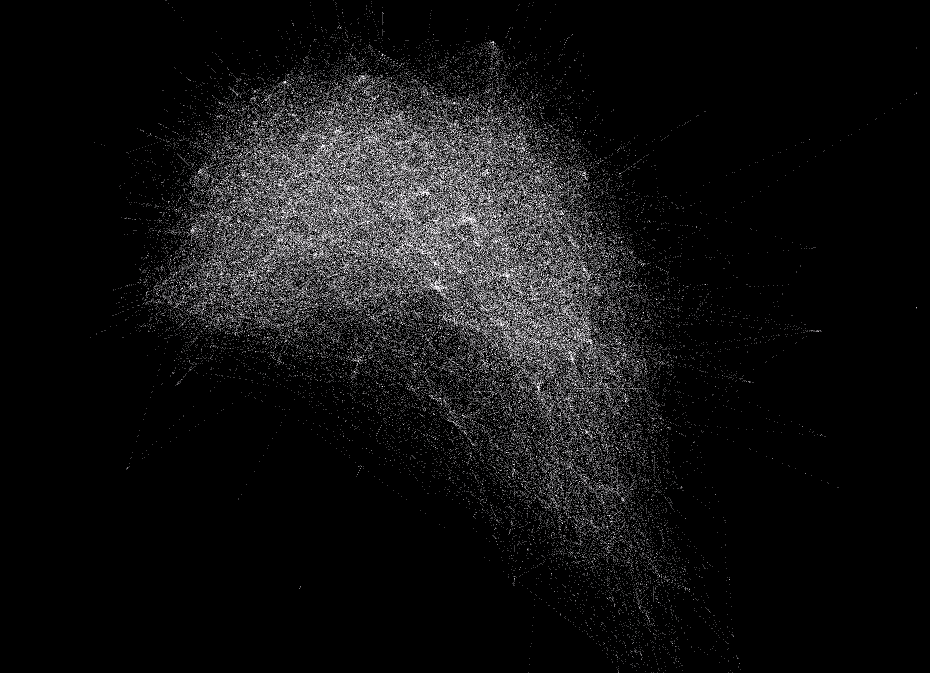

OpenOrd 默认 Wikitalk

FR 800 3 20 Wikitalk

FR 200 3 20 Wikitalk 100成型

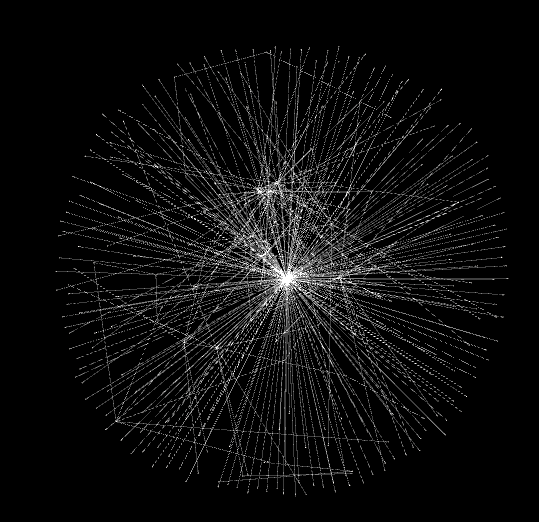

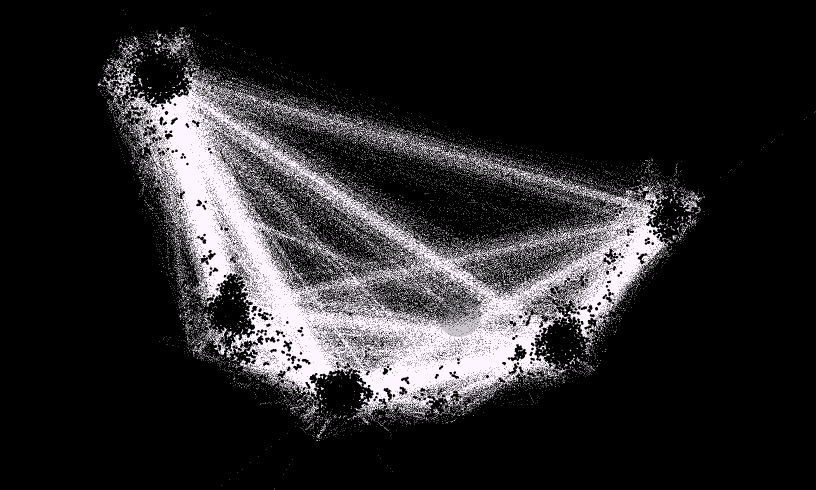

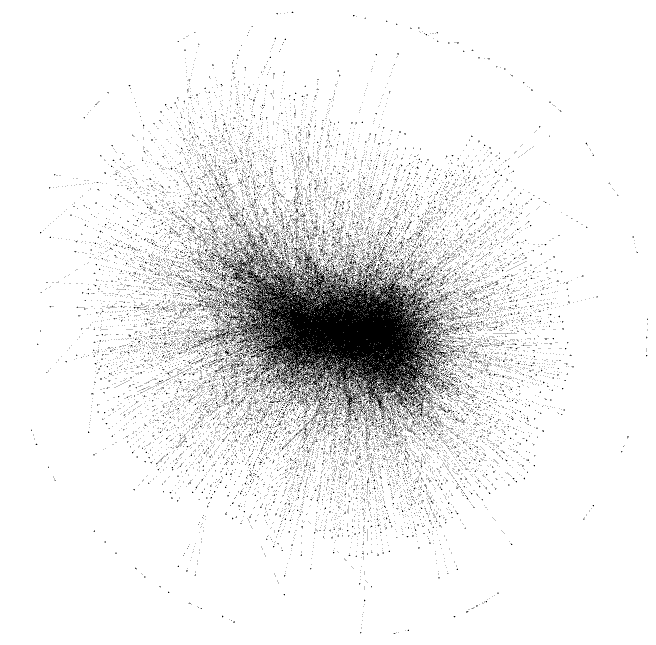

huyifan 默认 Wikitalk

我的算法200次 无采样部分

> This iteration( 200 ) of computing layout zb has finished ...
> Area               : 10000
> Spring constant    : 118.54466952761743
> Graph data and area were prepared sucessfully.
> Graph layout finished.
> Size of the graph  : 7115  nodes, 103689 edges.
> DONE!
> Use Time: 984507ms

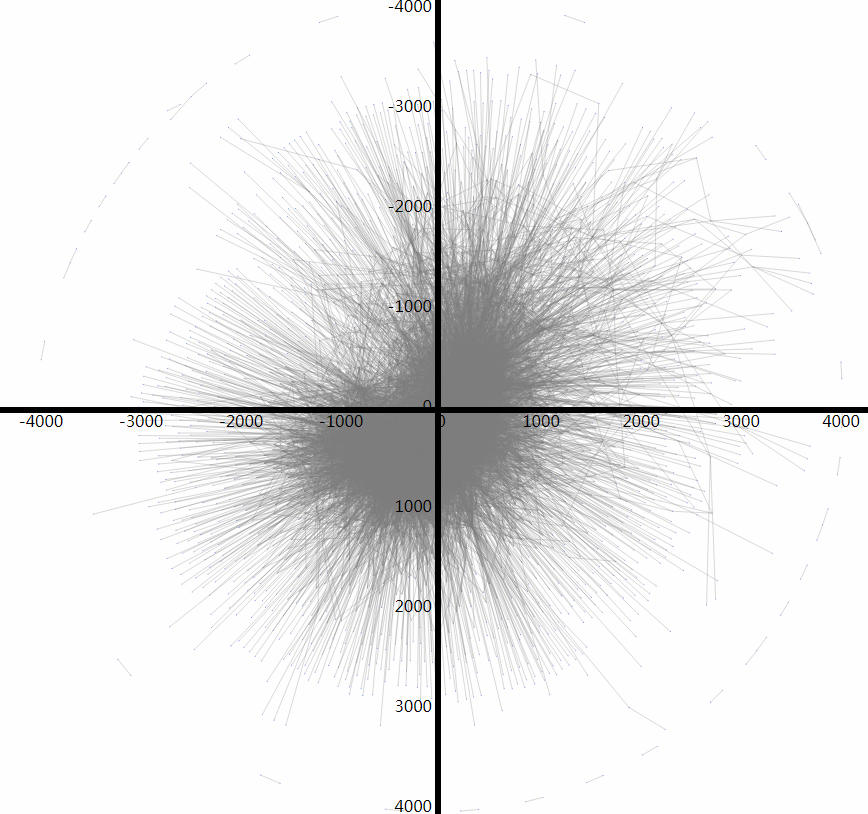

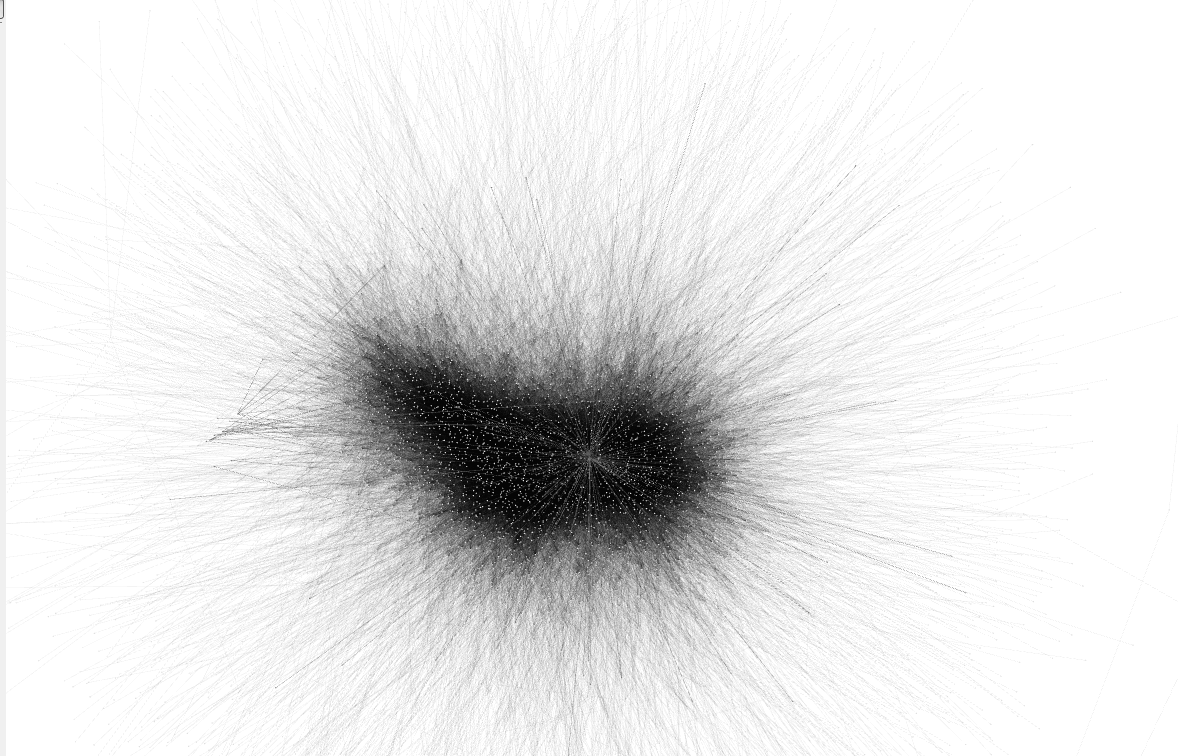

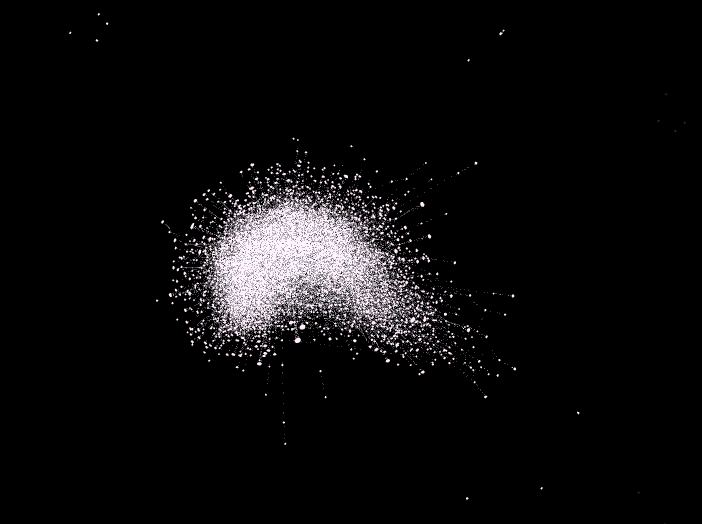

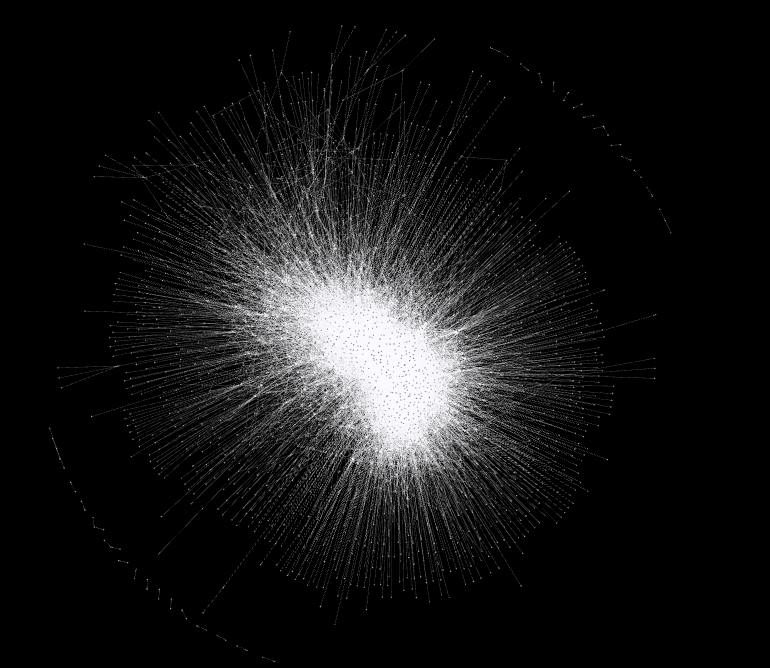

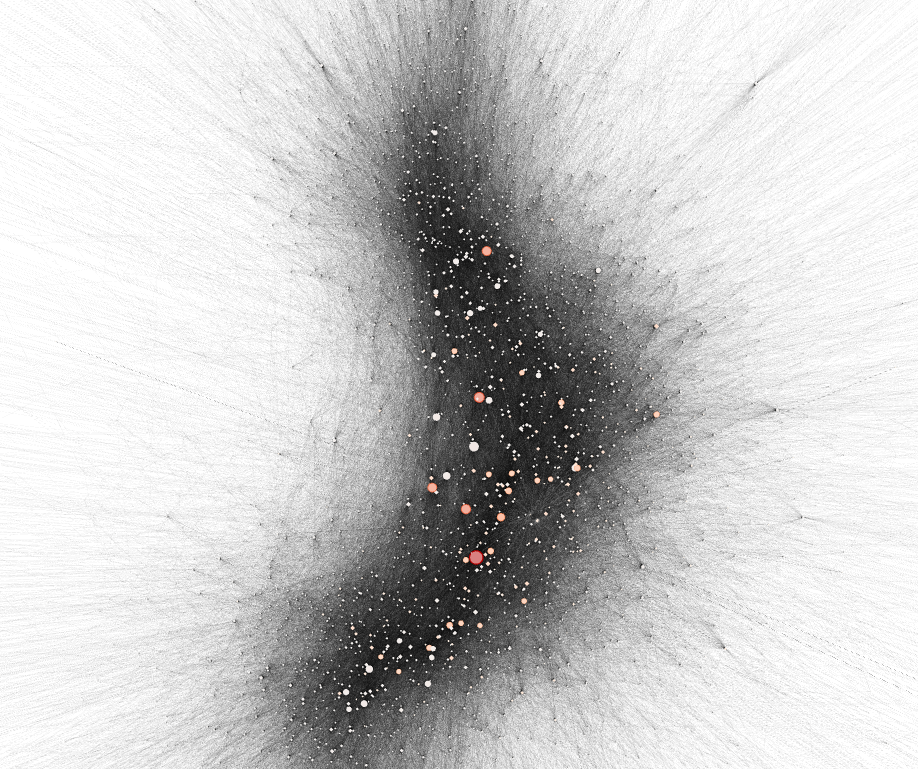

800 次 豌豆形状 速度20 重力3 Vote.txt FR

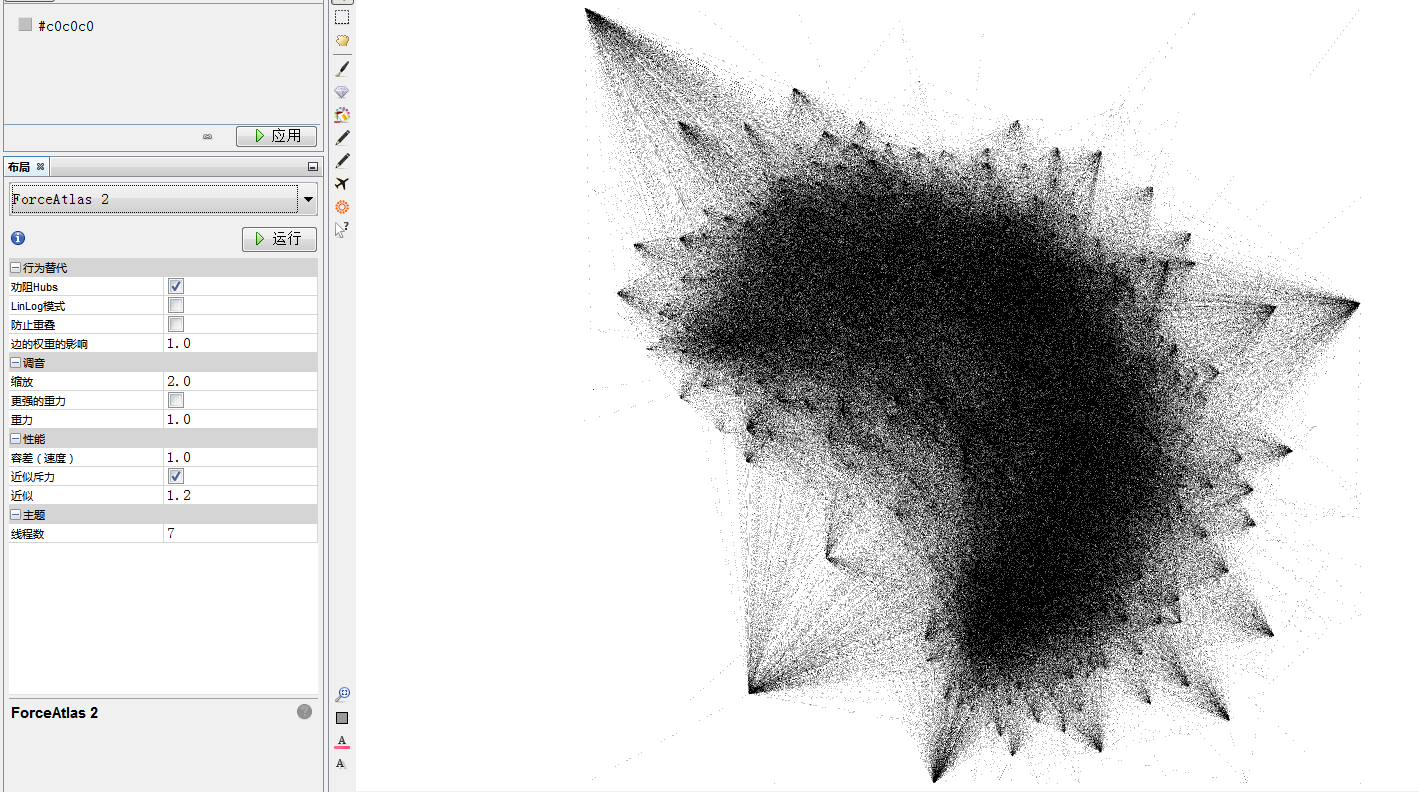

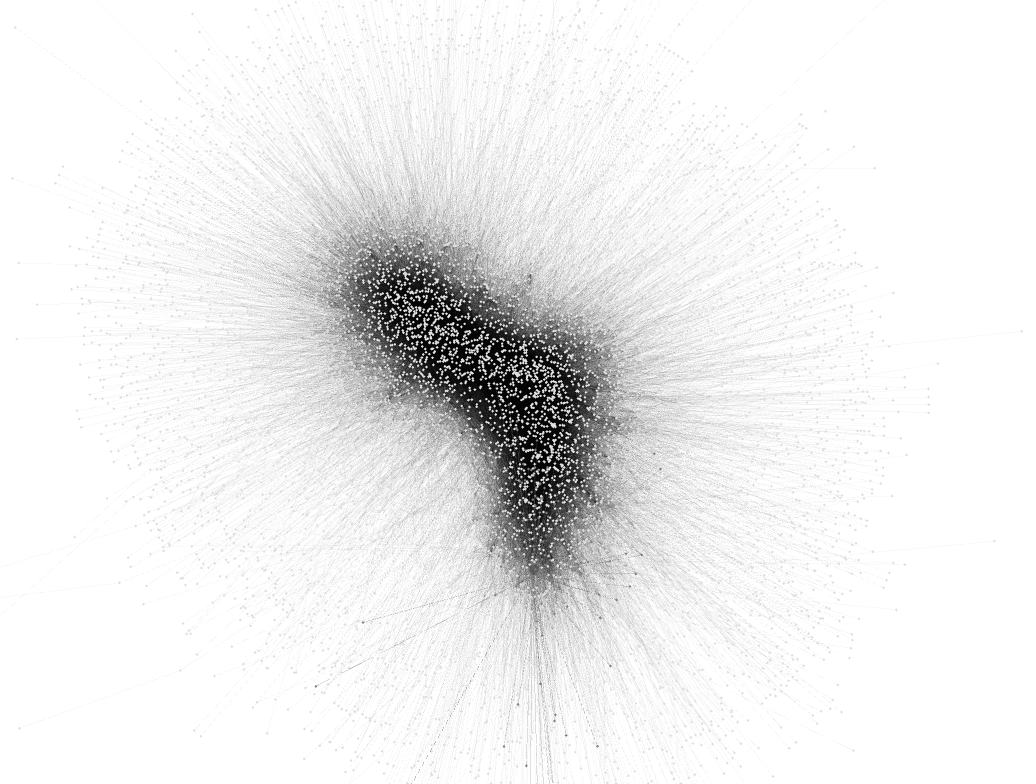

800 次 豌豆形状 默认linlog下 Vote.txt FA2

0.1 370

0.3 370

0,6

0.9

1

斥力计算时 对每个点的（n-1）节点进行采样，结果并不好，会导致节点内聚，并且减弱引力也没有效果，即采样过低时，会导致整个结构过于紧密，斥力不全（由于采样使斥力大小少了很多）

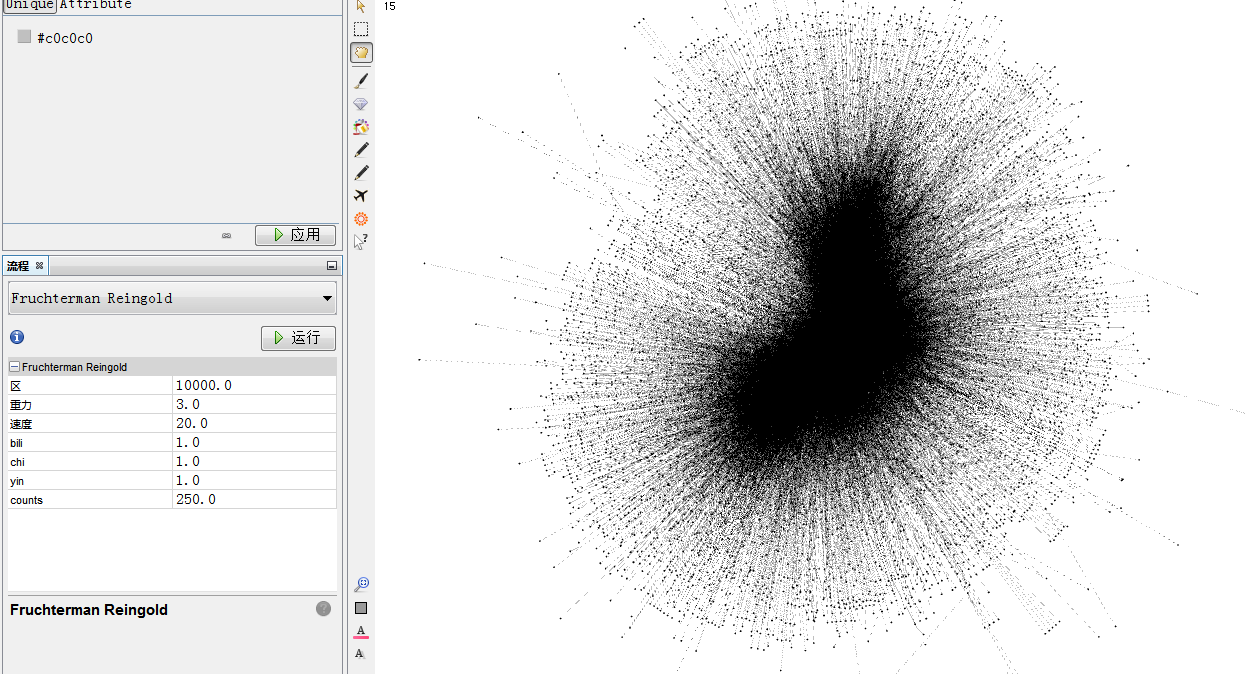

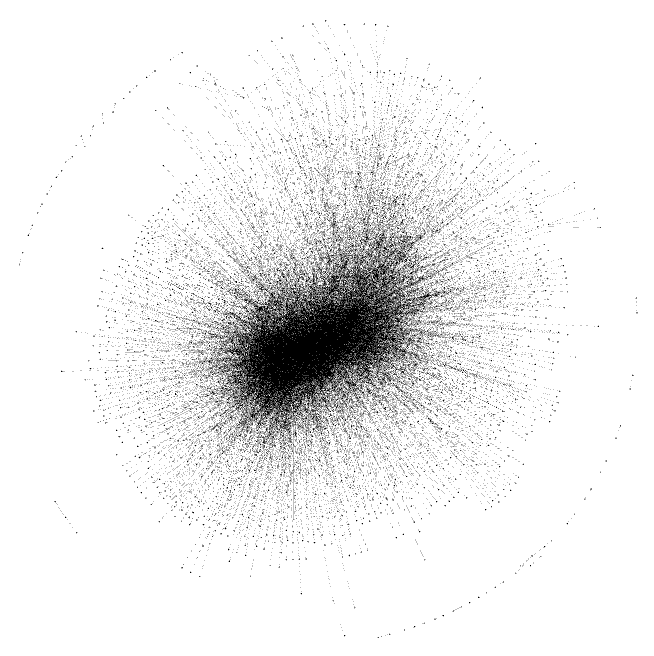

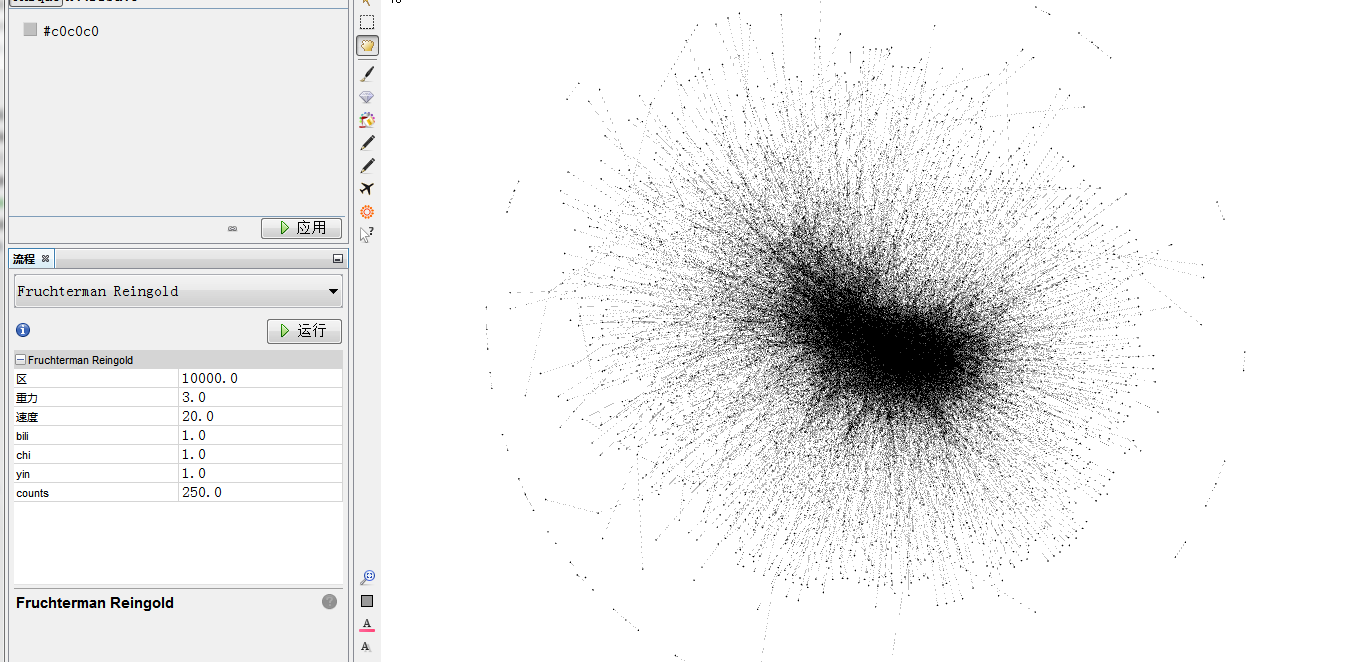

Wiki-Vote 250次

次数：250.0 时间：635.027秒

次数：250.0 时间：59.45秒

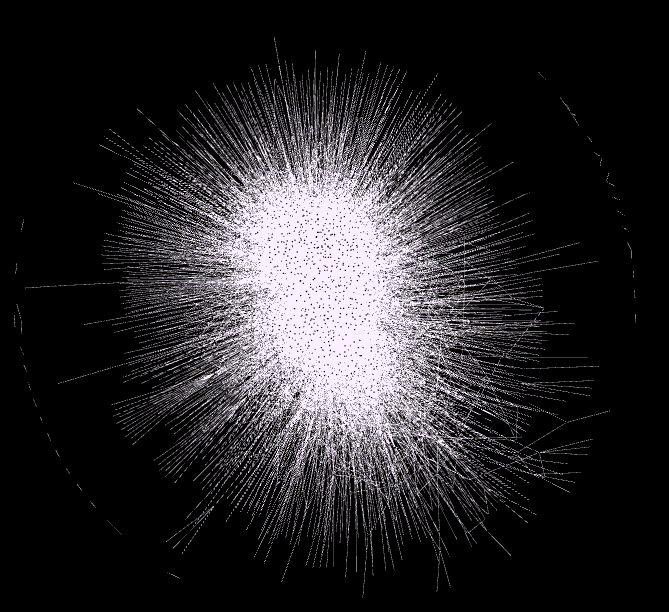

wiki-vote.txt 800 20 3
> This iteration( 797 ) of computing layout zb has finished ...
> This iteration( 798 ) of computing layout zb has finished ...
> This iteration( 799 ) of computing layout zb has finished ...
> This iteration( 800 ) of computing layout zb has finished ...
> Area               : 10000
> Spring constant    : 118.54466952761743
> Graph data and area were prepared sucessfully.
> Graph layout finished.
> Size of the graph  : 7115  nodes, 103689 edges.
> DONE!
> Use Time: 5052354ms

sourceLayoutData.dx -= xDist*yin * graph.getDegree(Nt) / dist * attractiveF;
sourceLayoutData.dy -= yDist*yin * graph.getDegree(Nt) / dist * attractiveF;
targetLayoutData.dx += xDist*yin * graph.getDegree(Nf) / dist * attractiveF;
targetLayoutData.dy += yDist*yin * graph.getDegree(Nf) / dist * attractiveF;

double dt = graph.getDegree(Nt) - graph.getDegree(Nf);
dt = Math.abs(dt);
if(dt==0) dt=1;
sourceLayoutData.dx -= xDist*yin * dt / dist * attractiveF;
sourceLayoutData.dy -= yDist*yin * dt / dist * attractiveF;
targetLayoutData.dx += xDist*yin * dt / dist * attractiveF;
targetLayoutData.dy += yDist*yin * dt / dist * attractiveF;

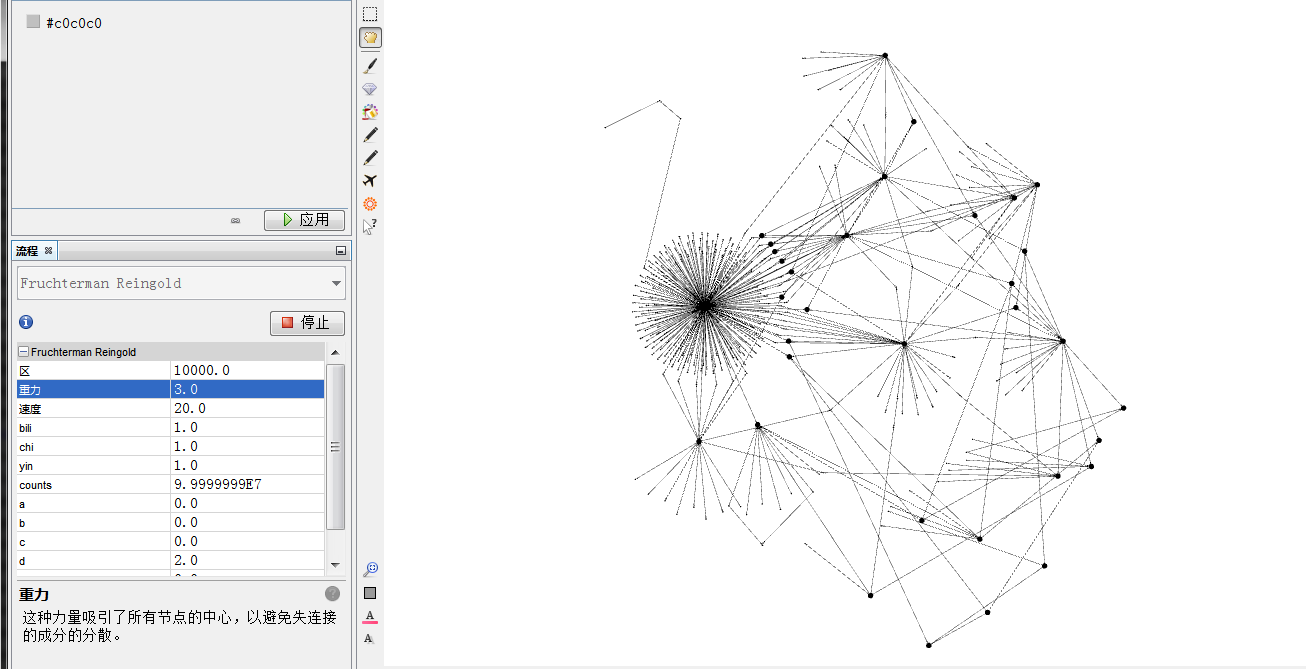

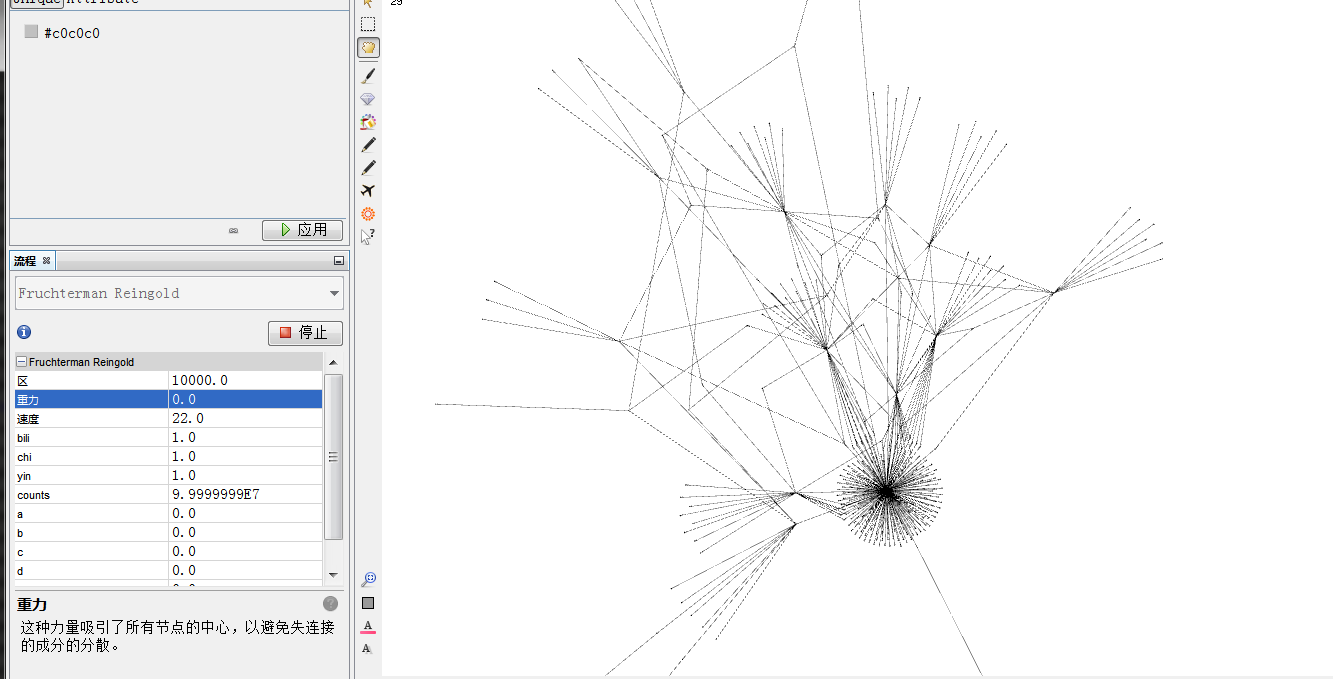

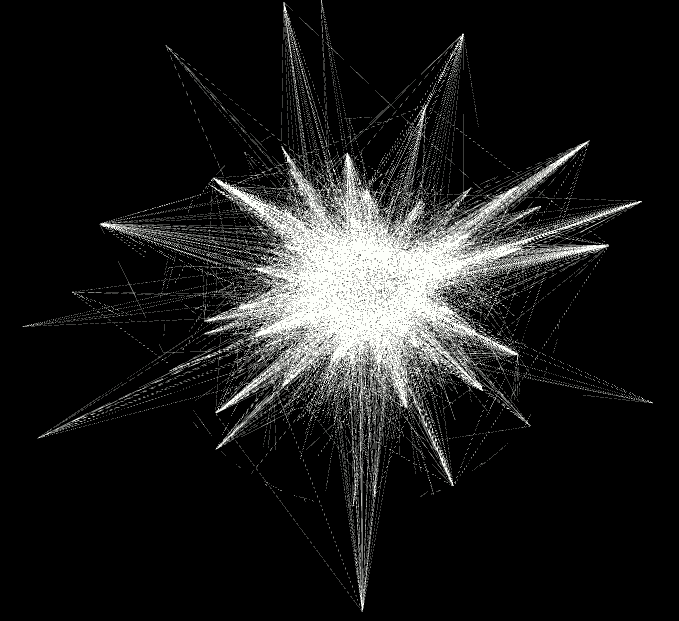

没重力

只有大节点的斥力

thisSet = 41 //// bignodes = 34 /// nodes = 327
thisSet = 35 //// bignodes = 34 /// nodes = 327
thisSet = 37 //// bignodes = 34 /// nodes = 327
thisSet = 252 //// bignodes = 34 /// nodes = 327
thisSet = 35 //// bignodes = 34 /// nodes = 327

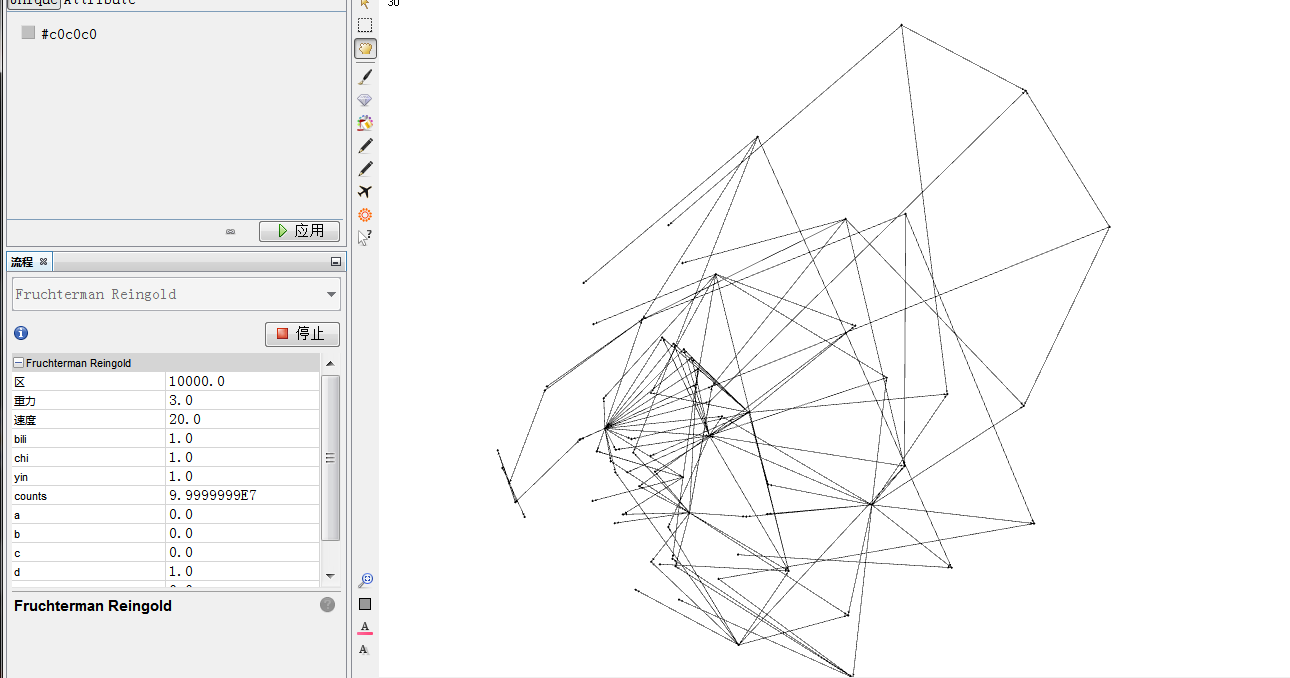

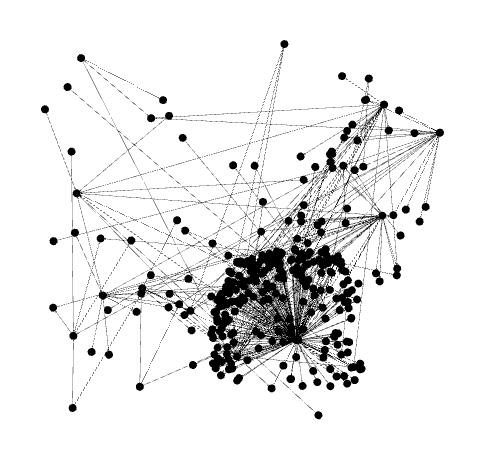

邻居节点+大度的节点（球状缺失）

邻居节点+大度的节点+邻居节点的邻居节点（出球的关键）

for (Node N1 : nodes) {
    graph.getNeighbors(N1);
    //List<Node> thisSet = bignodes;
    List<Node> thisSet = new ArrayList<Node>();
    if(graph.getDegree(N1) > avgD){
        //System.out.println("this is a big node.");
    }else{
        for (Node N2 : graph.getNeighbors(N1)) {
            thisSet.add(N2);
            for (Node N3 : graph.getNeighbors(N2)) {
                thisSet.add(N3);
            }
            //System.out.println(avgD+" ... "+graph.getDegree(N2)+"xxxxx ="+thisSet.size());
        }
    }
    for (int i=0;i<bignodes.size();i++) {
        if(!thisSet.contains(bignodes.get(i)))
            thisSet.add(bignodes.get(i));
    }
    //System.out.println("thisSet = "+thisSet.size()+" //// bignodes = "+bignodes.size()+" /// nodes = "+nodes.length);
    for (int i=0;i<thisSet.size();i++) {    // On fait toutes les paires de noeuds
        Node N2 = thisSet.get(i);
        if (N1 != N2) {
            float xDist = N1.x() - N2.x();    // distance en x entre les deux noeuds
            float yDist = N1.y() - N2.y();
            float dist = (float) Math.sqrt(xDist * xDist + yDist * yDist) - N1.size() - N2.size();
            ForceVectorNodeLayoutData layoutData1 = N1.getLayoutData();
            ForceVectorNodeLayoutData layoutData2 = N2.getLayoutData();
            if (dist > 0) {
                float repulsiveF = k * k / dist;            // Force de répulsion
                double dt = graph.getDegree(N1) - graph.getDegree(N2);
                dt = Math.abs(dt);
                if(dt==0) dt=1; //如果不加，会导致相同度的点之间斥力缺失
                layoutData1.dx += xDist*dt*chi / dist * repulsiveF;        // on l'applique...
                layoutData1.dy += yDist*dt*chi / dist * repulsiveF;
                layoutData2.dx -= xDist*dt*chi / dist * repulsiveF;        // on l'applique...
                layoutData2.dy -= yDist*dt*chi / dist * repulsiveF;
            }
        }
    }
}

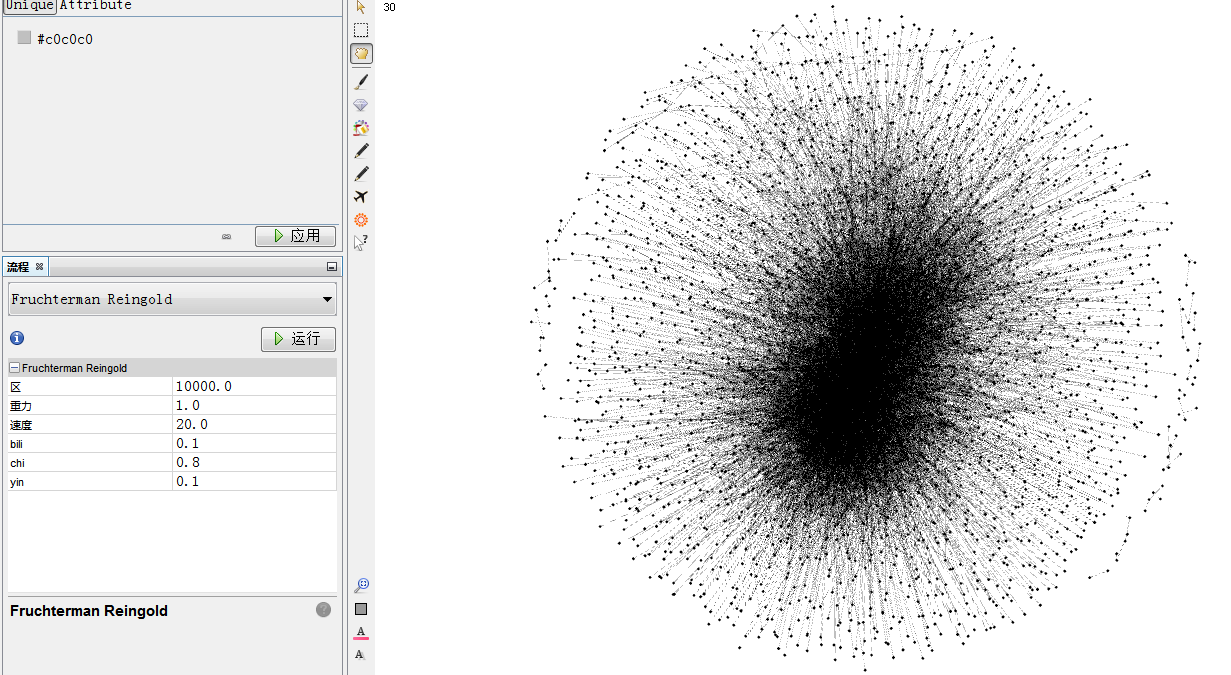

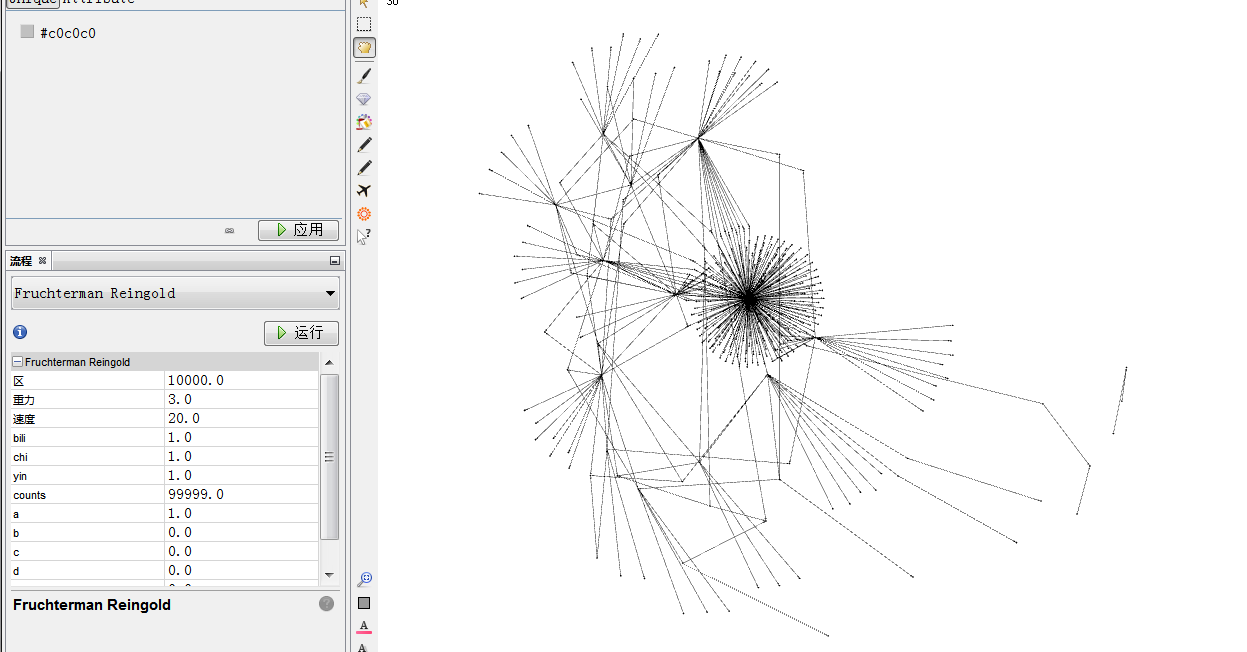

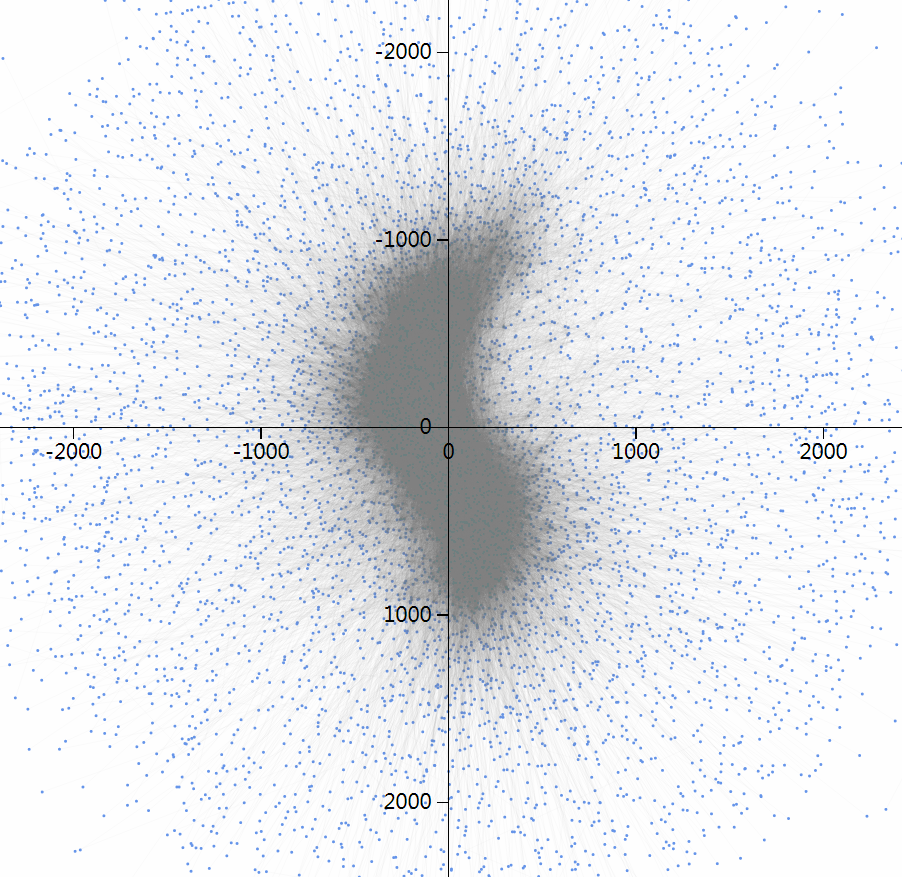

200 次 3 20 1st

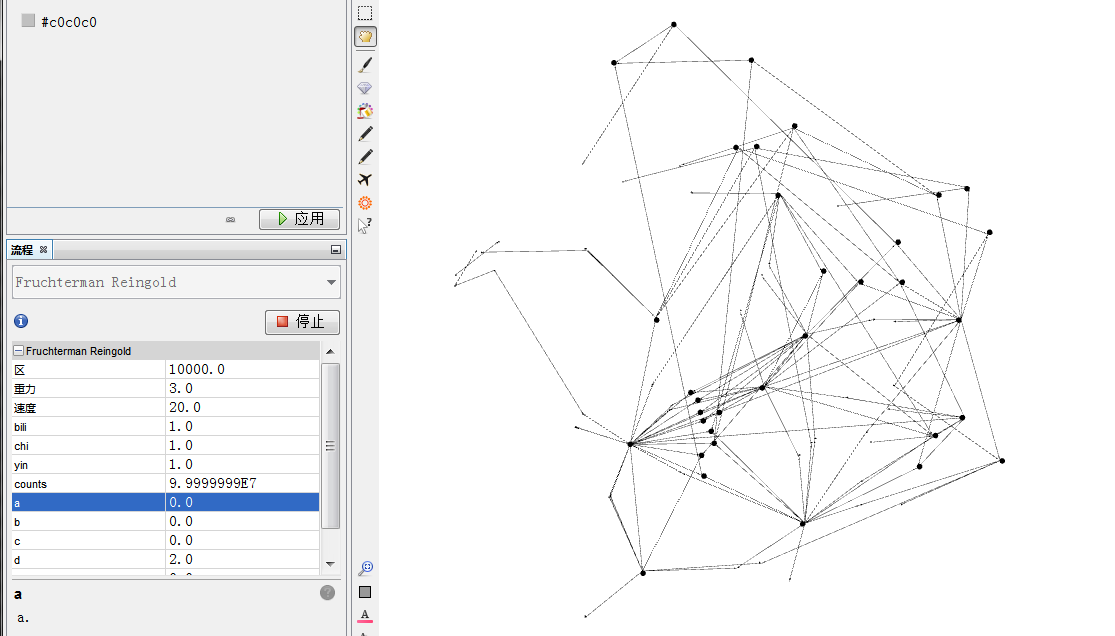

200 次 3 20 2nd

Area : 10000
Spring constant : 118.54466952761743
Graph data and area were prepared sucessfully.
Graph layout finished.
Size of the graph : 7115 nodes, 103689 edges.
DONE!
Use Time: 702522ms
