计算物理第十三次作业

作者：夏海峰 学号：2013301020094

作业5.3题

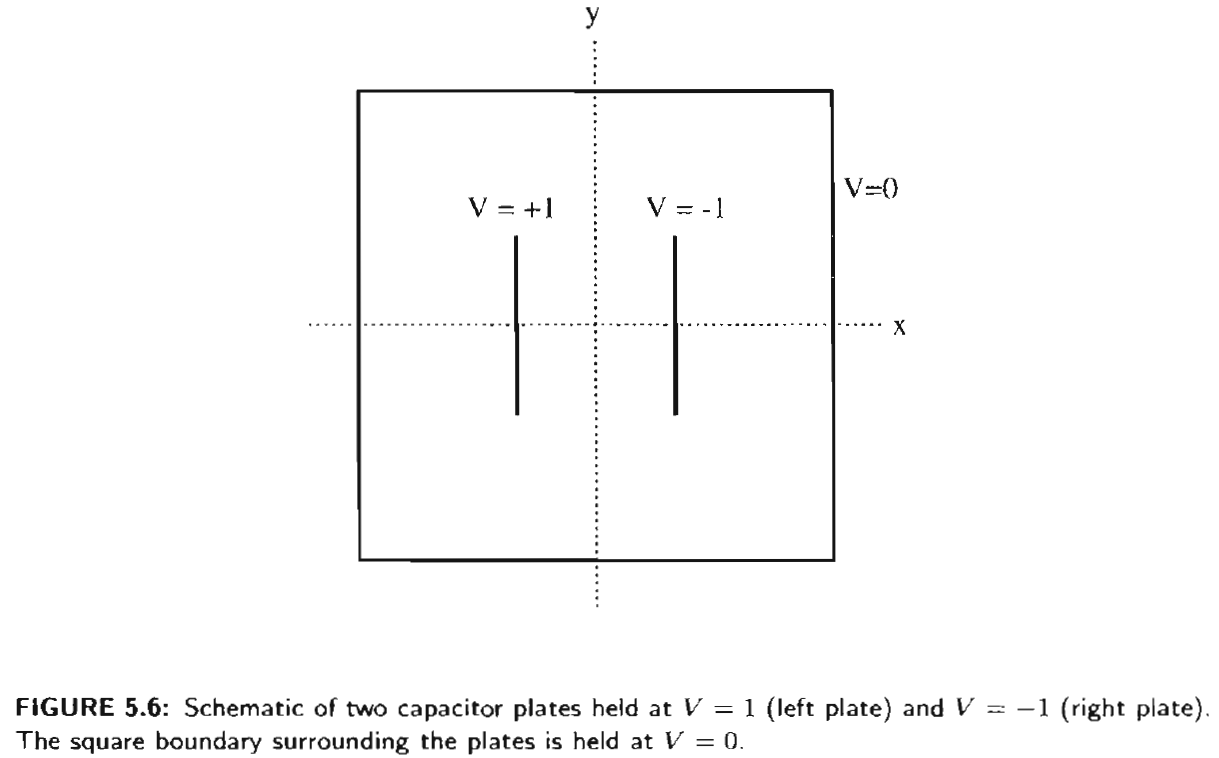

• Use the symmetry of the capacitor problem to write a program that obtains the result by calculating the potential in only one quadrant Of the x-y plane.


• 解决方法：

• Jacobi方法
• 具体解决方法：
  （1）确定边界条件
  （2）利用Jacobi方法：
  $$V_{new}(i,j)=\frac {1} {4}[V_{old}(i+1,j)+V_{old}(i-1,j)+V_{old}(i,j+1)+V_{old}(i,j-1)]$$

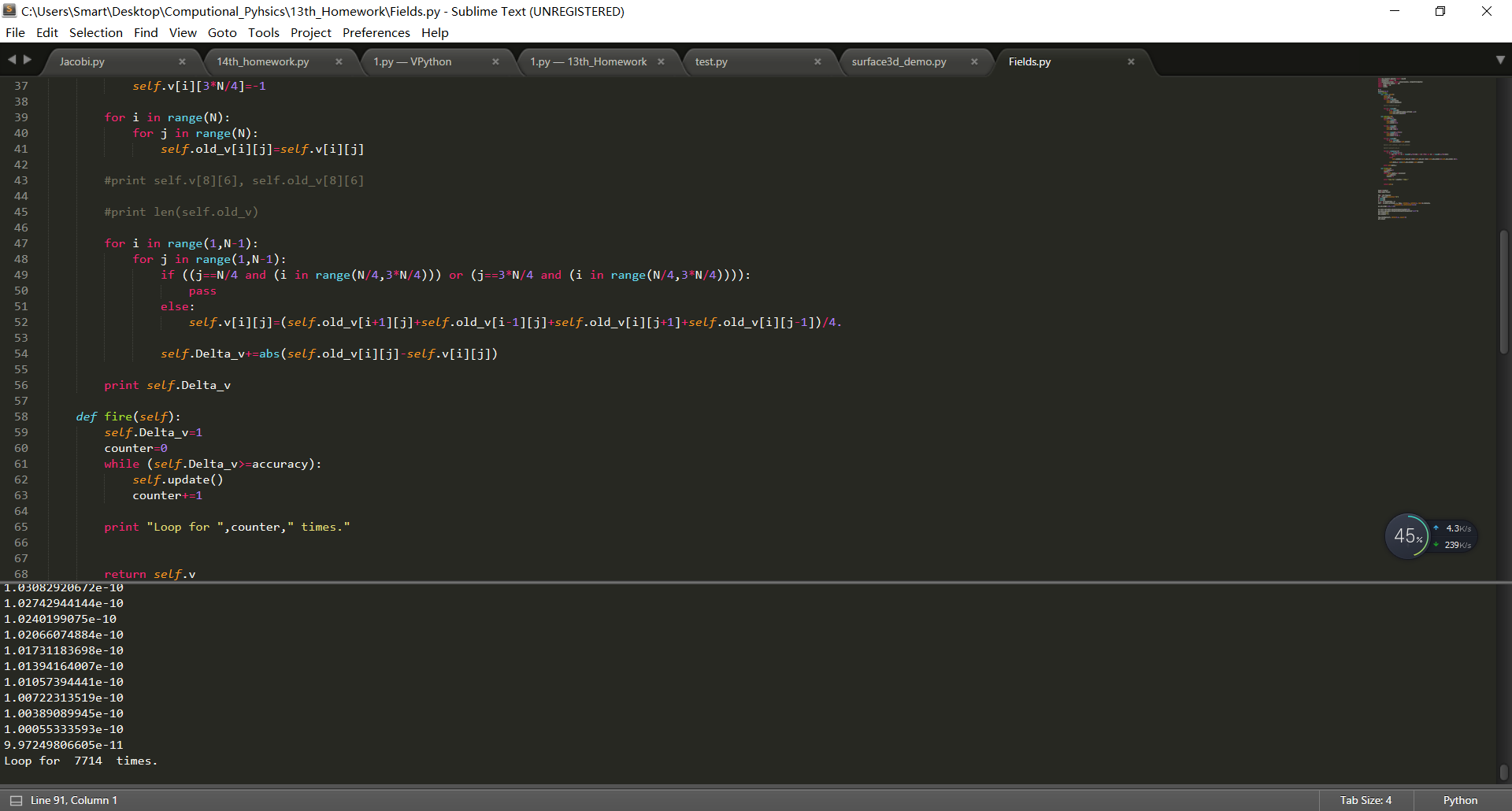

由图可知在计算了7714次后达到精确度要求！
程序
当计算了8351次后，前后两次$\Delta V$的差值已经小于$10^{-4}$。

程序如下：

from mpl_toolkits.mplot3d import Axes3D
from matplotlib import cm
from matplotlib.ticker import LinearLocator, FormatStrFormatter
import matplotlib.pyplot as plt
import numpy as np
import random
A_a=range(61)
A_a.remove(15)
A_a.remove(45)
class Fields:
    def __init__(self):
        self.v=[]
        self.old_v=[]
        for i in range(61):
            self.v.append([])
            self.old_v.append([])
        for i in range(61):
            for j in range(61):
                self.v[i].append(random.uniform(-1,1))
        #print self.v
    def update(self):
        for i in range(61):
            self.v[i][0]=0
            self.v[i][60]=0
        for i in range(15,45):
            self.v[i][15]=-1
            self.v[i][45]=1
        for j in range(61):
            self.v[0][j]=0
            self.v[60][j]=0
        for i in range(61):
            for j in range(61):
                self.old_v[i].append(self.v[i][j])
        self.Delta_v=0.
        for i in range(1,60):
            for j in range(1,60):
                if ((j==15 and (i in range(15,45))) or (j==45 and (i in range(15,45)))):
                    self.v[i][j]=self.v[i][j]
                else:
                    self.v[i][j]=(self.v[i-1][j]+self.v[i+1][j]+self.v[i][j-1]+self.v[i][j+1])/4.
            self.Delta_v+=abs(self.old_v[i][j]-self.v[i][j])
            print self.Delta_v
    def fire(self):
        for i in range(1000):
            self.update()
            i+=1
            print i
        return self.v
AA=Fields()
Super=AA.fire()
fig = plt.figure()
ax = fig.gca(projection='3d')
x=range(61)
y=range(61)
x, y = np.meshgrid(x, y)
surf = ax.plot_surface(x, y, Super, rstride=1, cstride=1, cmap=cm.coolwarm,
                       linewidth=0, antialiased=False)
ax.set_zlim(-1.01, 1.01)
ax.zaxis.set_major_locator(LinearLocator(10))
ax.zaxis.set_major_formatter(FormatStrFormatter('%.02f'))
plt.xlabel("X")
plt.ylabel("Y")
fig.colorbar(surf, shrink=0.5, aspect=5)
plt.show()
