王胖的生信笔记第32期：基于芯片实战的双向富集

做完芯片数据下载和简单控制后，后续比较常见生信分析之一就是做富集分析。富集可以基于各种公共数据，包括GO，KEGG，Reactome等等。

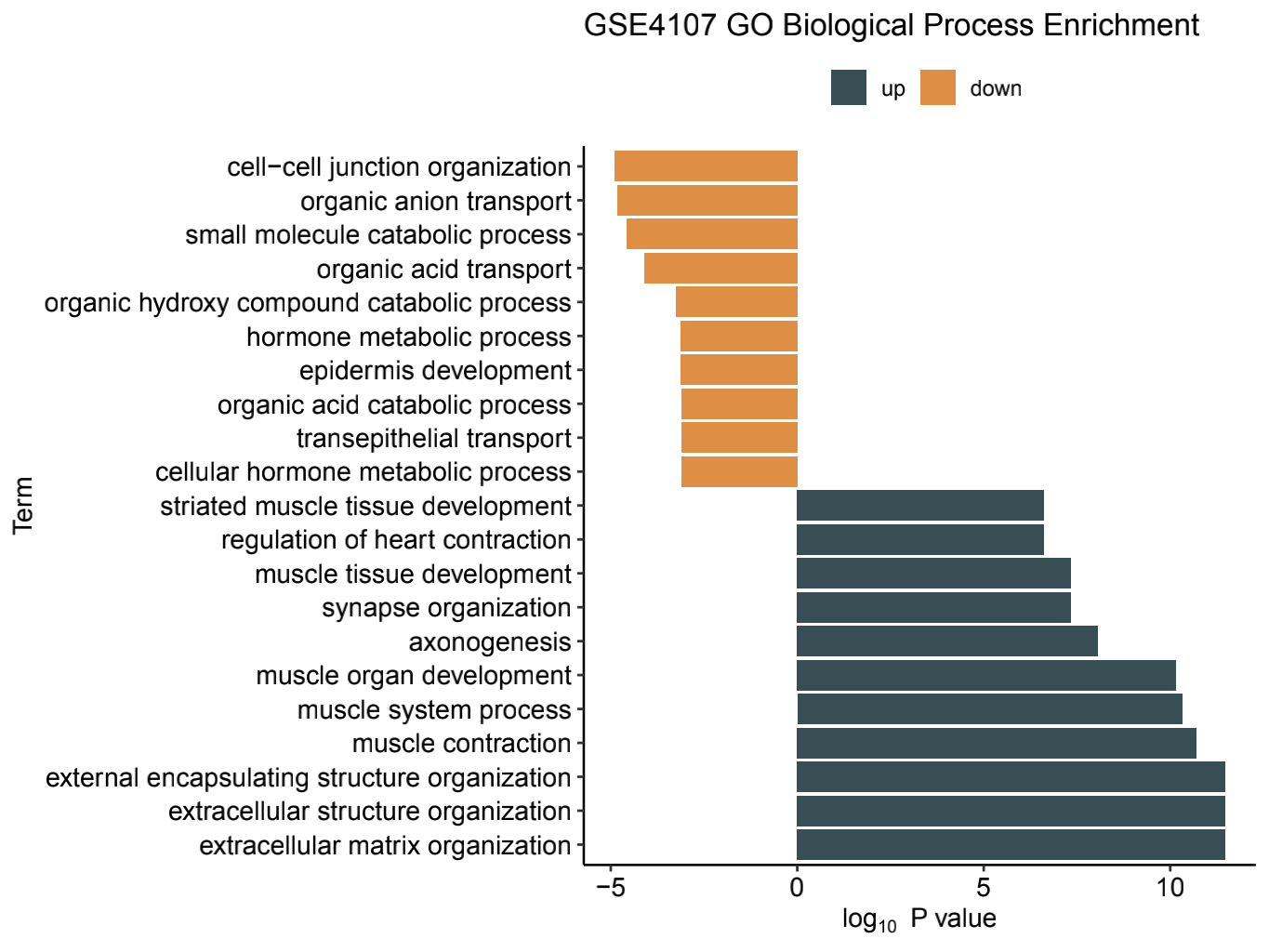

大家可能对传统的富集已经有办法了，怎么样作出像这样双向富集的图呢？（这个跟着生信技能树即可）

当然这个做的比较简单。后面我们来一步步做。

准备环境

library(stringr)
library(AnnoProbe)
library(tinyarray)
library(tidyverse)
rm(list = ls())
options(stringsAsFactors = F)

下载数据

gse = "GSE4107"
geo = geo_download(gse)
geo$exp = log(geo$exp+1)
change_list = ifelse(str_detect(geo$pd$title,"control"),"control","treat")
change_list = factor(change_list,levels = c("control","treat"))

ID转化+一步傻瓜化数据处理

find_anno(geo$gpl)
ids <- AnnoProbe::idmap('GPL570')
dcp = get_deg_all(geo$exp,
                  change_list,
                  ids,
                  logFC_cutoff = 1,
                  scale_before = T,
                  cluster_cols = F)

到了这一步就已经完成了数据准备了。后面就是利用这个数据做筛选变化，作出我们需要的图。

数据筛选，分开上调下调显著基因

因为我们要做上调下调两个方向的富集，所以要分开两个基因集。比较好的是用Tinyarray这个包还是有懒人法一步可以到位。

deg <- filter(dcp[[1]],adj.P.Val<0.05)
# 如果要看具体数值，可以这里筛选来看
degup <- dcp[[2]]$up$upgenes
degdown <- dcp[[2]]$down$downgeness

如果你用的是和我一样的数据和步骤，可以看到这样的结果。

head(degup)
[1] "FOSB" "FOS" "DUSP1" "CCDC3" "EGR1" "RERGL"
head(degdown)
[1] "NR1H4" "SLC51A" "BCKDHB" "MEP1B" "ETNK1" "AKR1C3"

分开富集

ego_ALL_up <- enrichGO(gene          = degup,
                       OrgDb         = 'org.Hs.eg.db',
                       keyType       = 'SYMBOL',
                       ont           = "BP",
                       pAdjustMethod = "BH",
                       pvalueCutoff  = 0.01,
                       qvalueCutoff  = 0.05)
ego_all_up <- data.frame(ego_ALL_up)
ego_all_up$direction <- "up"
ego_ALL_down <- enrichGO(gene          = degdown,
                         OrgDb         = 'org.Hs.eg.db',
                         keyType       = 'SYMBOL',
                         ont           = "BP",
                         pAdjustMethod = "BH",
                         pvalueCutoff  = 0.01,
                         qvalueCutoff  = 0.05)
ego_all_down <- data.frame(ego_ALL_down)
ego_all_down$direction <- "down"

分别选取上下调最显著通路再合并

ego_all <- rbind(ego_all_up,ego_all_down)
ego_all_up_sub <- ego_all_up %>% top_n(n = 10, wt = -`p.adjust`)
ego_all_down_sub <- ego_all_down %>% top_n(n = 10, wt = -`p.adjust`)
ego_all_sub <- rbind(ego_all_up_sub,ego_all_down_sub)
ego_all_sub$Description <- substring(ego_all_sub$Description,1,70)
ego_all_sub$pvalue = -log10(ego_all_sub$p.adjust)

开始作图

ego_all_sub[ego_all_sub$direction %in% "down",]$pvalue <- ego_all_sub[ego_all_sub$direction %in% "down",]$pvalue*-1
ego_all_sub[duplicated(ego_all_sub$Description),"Description"] <- paste0(ego_all_sub[duplicated(ego_all_sub$Description),"Description"],".1")
ego_all_sub$Description <- factor(ego_all_sub$Description,levels = ego_all_sub[order(ego_all_sub$pvalue,decreasing = T),"Description"])
ego_all_sub$direction <- factor(ego_all_sub$direction,levels=c("up","down"))
ggplot(ego_all_sub,aes(x=Description,y=pvalue, fill=factor(direction)))+geom_bar(stat="identity")+coord_flip( )+
  scale_fill_nejm()+theme_pubclean()+
  labs(x = "", y = "-log10 P Value",
       title = "GO Biological Process Enrichment")

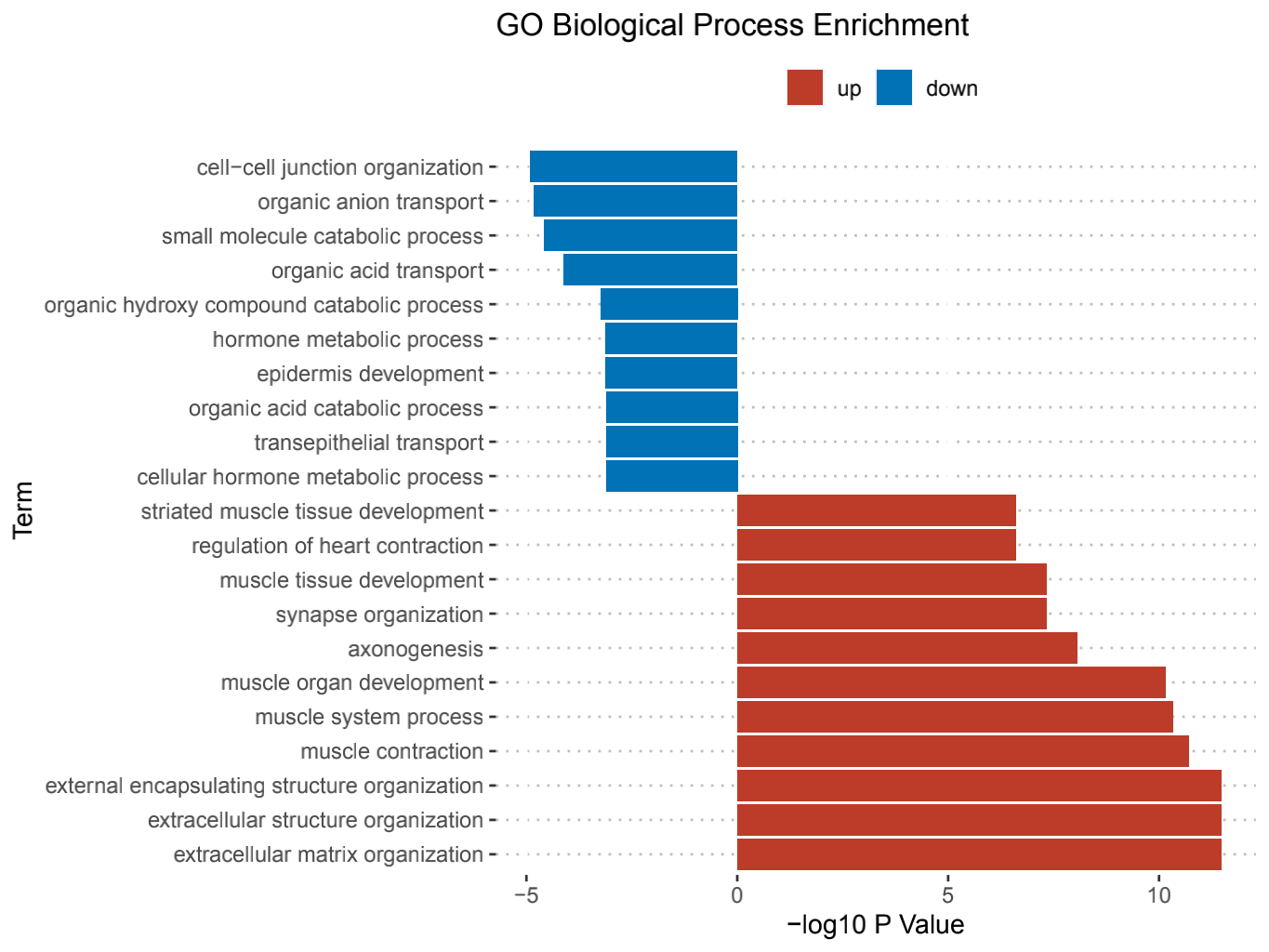

完成就是这样啦。

其实还有很多地方可以调整。
